STAINLESS STEEL KEYBOARD SPECIAL FEATURES :
1. 77 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard
2. with industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise
3. function keys F1, F2..F10, F11, F12 are on the top line for easy operation
4. movable stand alone DESK TOP VERSION, or mountable desktop with mounting holes on the bottoms for fixing.
5. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
6. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
7. Waterproof execution according to IP65 protection from top panel.
| KEYBOARD MECHANICAL DATA: | |
| Actuator/keys | 77 keys, super quality SUS304 brushed stainless steel |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar |
| Key travel | 1.5mm±0.1mm |
| Actuation Force | 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
| Switch life | more than 10 million of operations |
| Stainless Steel Housing | full 1.20mm thickness super quality brushed stainless steel |
| G.W. | 1.80KGs |
| Current Rating | appr. 20mA |
| Interface | PS2, USB available |
| ELECTRICAL DATA: | |
| Supply Voltage: | 5V DC ±5% |
| Current Rating: | 30mA |
| Lifespan | > 5 years |
| Switch Contact Material: | Carbon-on-Gold key switch technology PCB. |
| Interface: | PS2, USB available |
| OS: | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature: | -20oC to +65oC |
| Storage temperature: | -30oC to +75oC |
| Operating RH: | 30-90% |
| Atmospheric pressure: | 60-106Kpa. |
| Saline mist: | 96 hours, IEC 60512-6 |
| Damp heat test at + 40oC: | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC: | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level: | IP65(front panel) |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |

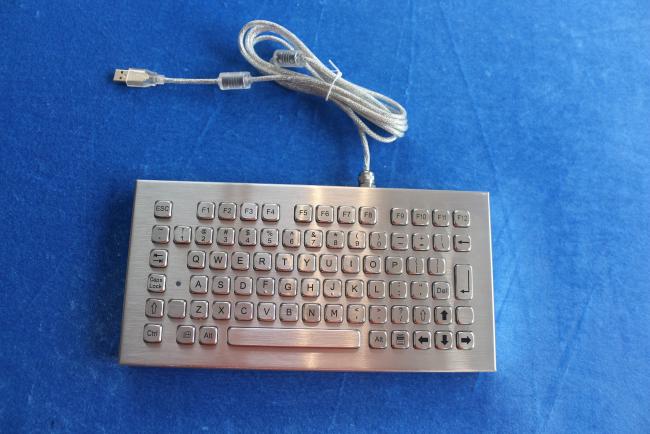

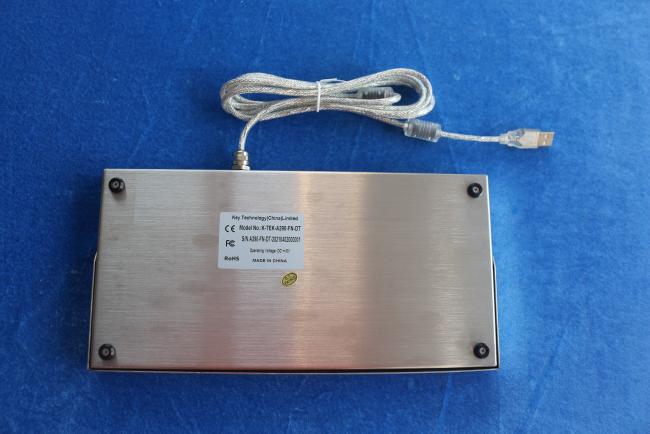

Stainless Steel keyboard Actual Photos:
