Industrial Waterproof keyboard with Integrated touchpad for Kiosk
103keys IP65 Dynamic Washable 420mm Stainless Steel Industrial Keyboard With Touchpad
Special Features:
1. 103 Keys Compact Format IP65 dynamic Vandal Proof Stainless Steel Industrial Keyboard with with full keyboard functionalities.
2. With IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position.
3. Function keys F1, F2..F10, F11, F12 are on the top line for easy operation, numeric keypad (optional PINPAD with Encryption Electronics Controller supporting DES/TDES).
4. Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise.
5. One complete silicone rubber under the top stainless steel plate for easy mounting & sealing tightly with cabinet, stainless steel top plate with threaded bolts for top panel mounting solution.
6. It is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
Specifications Details:
|
MECHANICAL DATA : |
|
|
Key |
103 keys, super quality SUS304 brushed stainless steel |
|
Key top style |
Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
|
Key Size |
14.0mm x 14.0mm for normal keys, |
|
Key travel |
2.00mm |
|
Switch life |
more than 10 million of operations |
|
Actuation Force |
0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ) |
|
Front Plate |
1.5mm thickness super quality brushed stainless steel |
|
Back Plate |
3.0mm thickness brushed & oxidized aluminum |
|
Touchpad |
sealed and ruggedized tough touchpad |
|
G.W. |
2.10KGs |
|
Dimensions |
|
| ELECTRICAL DATA : |
| Supply Voltage: | +5V DC +/-5% |
| Current Rating: | appr. 50mA |
| EMC Standard: | EN 55032:2015, EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material: | Carbon-on-Gold key switch technology PCB |
| Interface: | PS2, USB available |
| OS: | All Windows, Linux, Unix, Mac OSX, Vxworks, Android(U-cos--To be confirmed). |
Front View

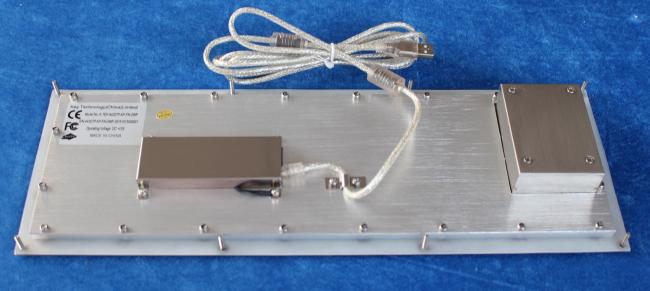

Back View
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.
Q: How long is your delivery time?
A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.
Q: Do you provide samples ?
A: Yes, we could offer the sample of one quantity first before large quantity orders.
Q: What is your terms of payment ?
A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
