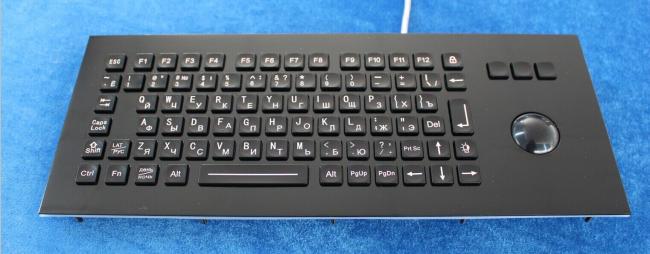

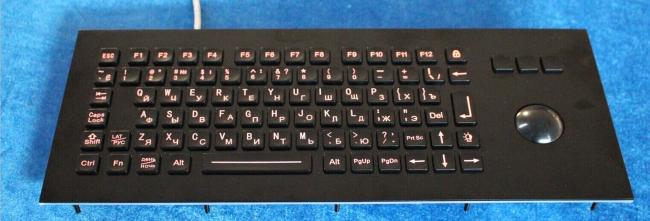

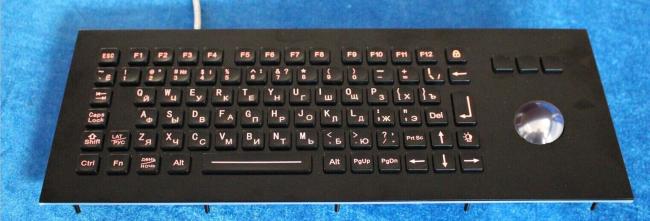

Rugged Trackball Black Metal Keyboard
84 keys military black backlit stainless steel keyboard with rugged trackball
Special Features:
1. 84 keys military black backlit stainless steel keyboard with rugged trackball.
2. With durable polymer keys and IP65 static 38.00mm trackball moudle.
3. Imposing stainless steel design, specially designed keyboards meet the highest demands
4. With regard to design, functionality, longevity and high protection level.
5. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion,
6. Waterproof execution according to IP65 protection from top panel.
7. Top stainless steel plate with threaded bolts for easy tightly mounting to enclosure or panel.
8. An excellent tactile feel with full-long travel switches.
9. Optional trackball modules:
IP65 static 38.00mm with 400 DPI mechnical trackball module.
IP68 dynamic washable 800DPI optical trackball module,
IP68 dynamic washale 1200DPI laser trackball module
Specifications:
|
MECHANICAL DATA |
|
|
Key |
84 keys, 0.45mm thickness super quality SUS304 brushed stainless steel flat key. |
|
Key top style |
Non-Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
|
Key Size |
14.0mm x 14.0mm for normal keys, |
|
Key travel |
0.45mm |
|
Switch life |
more than 5 million of operations |
|
Actuation Force |
2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
|
Front Plate |
1.5mm thickness super quality brushed stainless steel |
|
Back Plate |
3.0mm thickness brushed & oxidized aluminum |
|
Actuator/keys materials |
stainless steel |
|
G.W. |
2.20KGs |
|
Dimensions |
361.0mm x 145.0mm (L x W ) |
