64 Keys Stainless Steel Backlit Usb Keyboard , Industrial Metal Keyboard With Trackball

Price Negotiable
Price: Price to be quoted
MOQ: 1pc
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Brand: IKB-MKB
Product Description

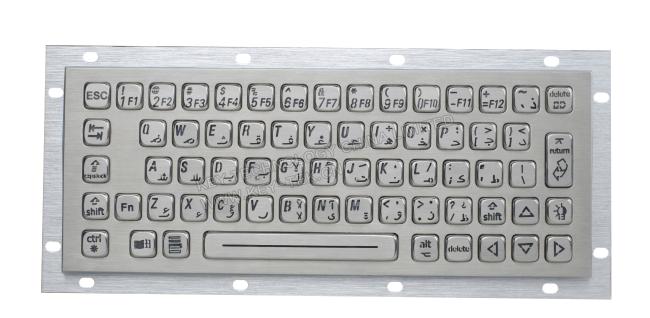

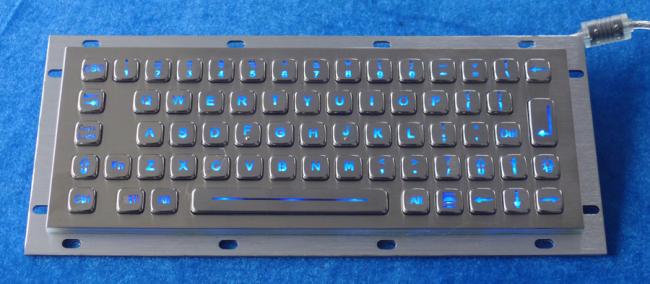

64 keys water proof stainless steel backlit usb keyboard at rear panel mount





Dimension: 272.0mm x 105.0mm (front panel)


Description:

66 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard, industrial PCB with
carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate input without any noise, with rear panel mounting solution. Stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with adjustable industrial backlight included.(Blue,Red, White colors etc. optional).



Special Features:



1. IP65 dynamic vandal proof stainless steel industrial kiosk keyboard
2. Industrial metal PCB with carbon-on-gold key switch technology
3. CE,RoHS,FCC,IP65, ESD

4. rear aluminium plate with mounting holes easily & tightly mounting to enclosure or panel.

5. with long stroke (2.0mm) with extremely good tactile feeling

6. with adjustable industrial backlit included (Red or Blue or Green color optional).

7. PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install

separate driver

8. water proof/dirt proof, operation under hostile environments.




Applications:


This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.




Specifications:



MECHANICAL DATA

Actuator/keys

64 keys,
2.0mm thickness super quality SUS304 brushed stainless steel bulge keys.

Key top style

protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys,
14.0mmx28.0mm for Enter Key
14.0mm x 100.0mm for space bar.

Key travel

2.0mm

Switch life

more than 10 million of operations

Actuation Force

0.6 0N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Mounting Rack

Aluminum alloy

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

3.0mm thickness brushed & oxidized aluminium

G.W.

1.20KGs

Dimensions

272.0mm x 105.0mm (front panel) , 296.0mm x 129.0mm (back panel)









Package and shipment





































































Warranty
