50mm White Industrial Trackball For Medical , Ip68 Waterproof
IP68 waterproof optical 50mm trackball for medical with white colour
Quick Details:
1. IP68 50mm militaty optical trackball moudle for medical
2. IP68 washable waterproof.
3.Military level which can compatible wider temperature working conditions
4.50mm white resin optical trackball moudle with 800 DPI resolution
5.CE, FCC, RoHS, IP68, ESD
6.IP68 waterproof optical 50mm trackball for medical with white colour
Descriptions:
IP65 static rated 38mm Mechanical Trackball Module with touch changeable chameleon backlight, with 400 DPI resolutions.
Specification:
|
ITEM |
SPECIFICATION |
||
|
Mechanical Data |
Ball diameter |
50mm/2.00' (16mm, 25mm, 38mm also available) |
|
|
Track ball lifespan |
> 10 Mio revolutions |
||
|
Actuation Force |
1.0N to 3.0N |
||
|
Dimension |
50.0 mm diameter for ball, 77.50mm x 77.50mm x 31.80mm(front panel) |
||
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
||
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
|
Protection level |
IP65 (static), NEMA4X |
||
|
EMC Standard |
EN55022(B) |
||
|
Power consuming |
≤1.00W(dynamic) |
||
|
≤0.2W(static) |
|||
|
Environmental |
Operating temperature |
-20ºC~+ 60º C |
|
|
Storage temperature |
- 30ºC~+ 70ºC |
||
|
Operating RH |
30～90% |
||
|
Atmospheric pressure |
60～106Kpa. |
||
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified, ESD |
|
|
MTBF |
>50000h |
||
|
MTTR |
< 30min |
||
|
OS |
All windows, Linux, Unix, Mac OSX |
||
|
Packing Details |
Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. |
||
Applications:
This industrial trackball module is mainly targeted for use for:
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
E: OTHER INDUSTRIES

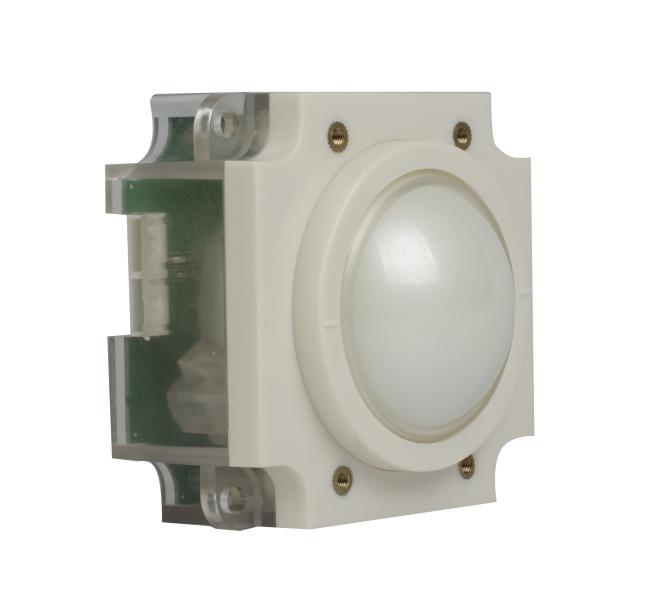

Actual Photos:
