IP66 304 Stainless Steel rear panel mounting industrial Keypad For outdoor applications
IP66 304 Stainless Steel rear panel mounting industrial Keypad For outdoor applications
DESCRIPTION:
16 keys compact format IP67 dynamic water proof and vandal proof stainless steel industrial keypad with fully sealed & ruggedized industrial PCB connected to industrial electronics controller shielded & protected by stainless steel housing, carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, with mounting holes on rear stainless steel plate for rear panel mounting. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
Dimensions: 100.0mm x 90.0mm (front panel)
ELECTRICAL DATA:
|
Supply Voltage |
+5V DC +/-5% |
|
Current Rating |
appr. 20mA |
| EMC Standard | It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004 |
| EMI | EN 55022: 2010 |
| EMS | EN 55024: 2010 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB, RS232, RS485 available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
MECHANICAL DATA
- Front plate: Super quality SUS304 brushed stainless steel
- Back plate: Super quality SUS304 stainless steel
- Actuator/Key: 16 keys, super quality SUS304 brushed stainless steel
- Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots available.
- Key size: 14.0mm x 14.0mm for normal key, 14.0mm x 28.0mm for function keys
- Switching material: Carbon-on-Gold.
- Actuation Force: 0.60N +/-0.10N (pressure point), 1.20 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
- Key Travel: 2.0mm.
- Key life: 10 million of operation
- Dimensions: 100.0mm x 90.0mm.
- G.W. 0.66kg.

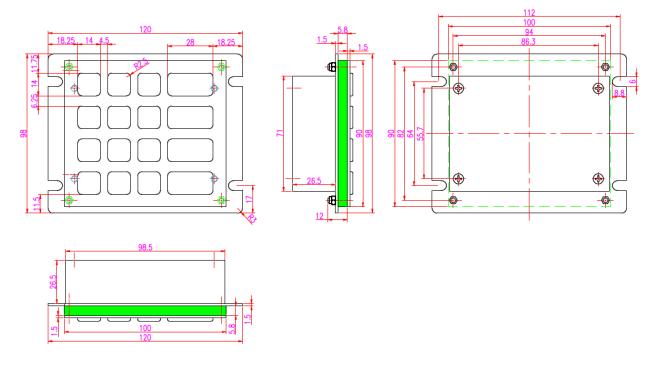

Mechanical Drawing:

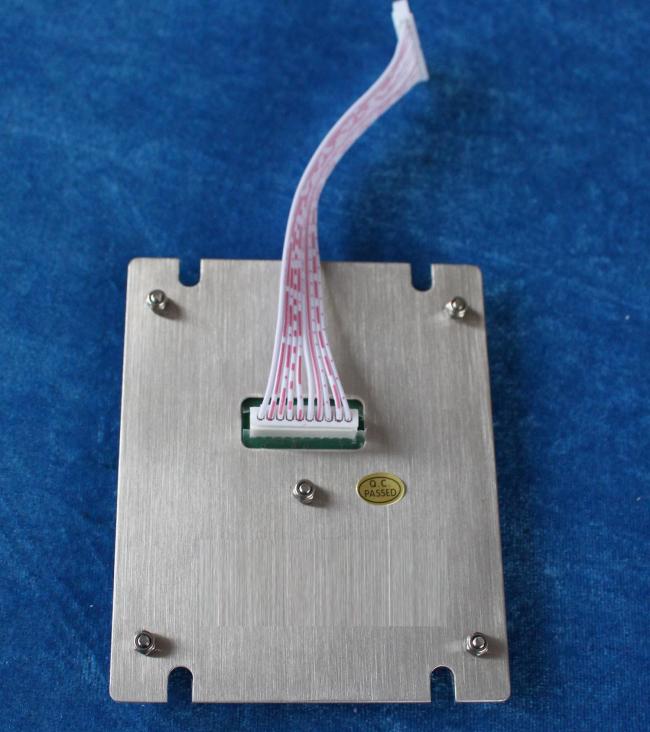

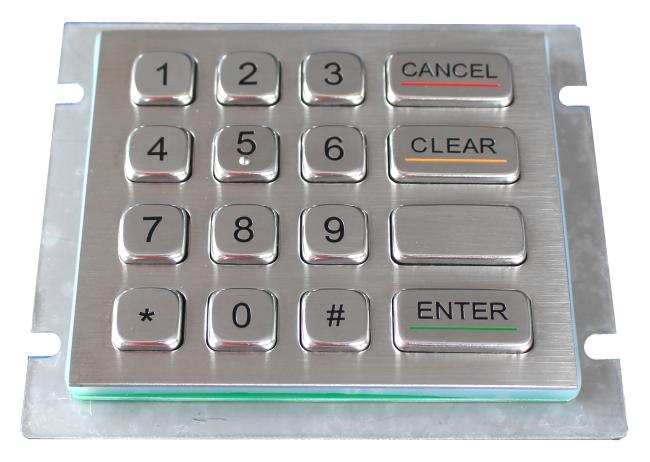

Actual Pictures:
ENVIRONMENTAL ADAPTABILITY:
- Operating temperature:-20oC to +60oC
- Storage temperature: -30oC to +70oC
- Operating RH: 30-90%
- Atmospheric pressure: 60-106Kpa.
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40oC: 21 days, IEC 60512-6
- Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY:
- RoHS Compliant, CE and FCC, ESD
- Protection Level: IP67(front panel)
- Vandal resistant IK09
- Key Lifespan >10 million actuations
- MTBF >50000H
- MTTR <30min
