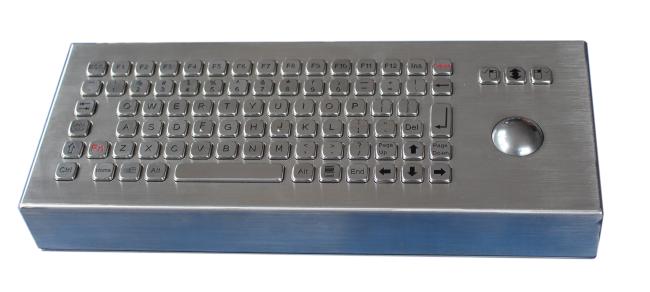

IP66 84 Keys Desktop Silver Industrial Metal Keybaord For Outdoor

APPLICATION

• This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MECHANICAL DATA

• Actuator/keys: 84 keys, super quality SUS304 brushed stainless steel
• Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are
• available
• Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space

    bar.

• Key travel: 2.0mm long stroke.
• Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point)

    1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

• Switch life: more than 10 million of operations.
• Stainless Steel Housing: 1.20mm thickness super quality brushed stainless steel.

ELECTRICAL DATA

• Supply Voltage: +5V DC +/-5%
• Current Rating: appr. 20mA
• EMC Standard: It is compliance with the council IEC 61000-4-2:2008；
• IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
• EMI: EN 55022: 2010
• EMS: EN 55024:2010
• Lifespan > 5 years
• Switch Contact Material: Carbon-on-Gold key switch technology PCB.
• Interface: PS2, USB available, RS232 for EPP
• If needed, numeric keypad is available to be with encryption electronics controller supporting DES/Triple DES.
• OS: All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20oC to +60oC
• Storage temperature: -30oC to +70oC
• Operating RH: 30-90%
• Atmospheric pressure: 60-106Kpa.
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40oC: 21 days, IEC 60512-6
• Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY

• RoHS Compliant, CE and FCC, ESD
• Protection Level: IP68(front panel)
• Vandal resistant IK09
• Key Lifespan >10 million actuations
• MTBF >50000H
• MTTR <30min
