IP65 Industrial Metal Explosive Proof Keyboard With Trackball Panel Mount SUS304 Steel
Vandal proof Industrial Metal Keyboard with Trackball Panel Mount SUS304 Steel
DESCRIPTION: 86 keys (including 3 mouse buttons) compact format IP65 dynamic vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
DIMENSIONS: 361.0mm x 145.0mm (top panel)
| STAINLESS STEEL KEYBOARD MECHANICAL DATA | |
| Actuator/keys | 86 keys (including 3 mouse buttons) |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point) |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 3.0mm thickness brushed & oxidized aluminium |
| Switch life | more than 5 million of operations |

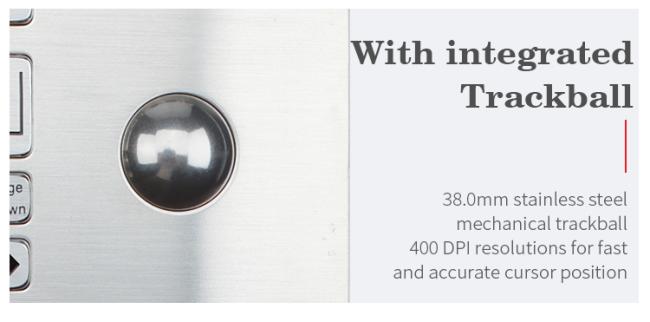

| Tracker ball | 38.0mm stainless steel optical trackball module, silver resin ball module optional |
| G.W. | 2.00KGs |
| METAL KEYBOARD ELECTRICAL DATA | |
| Supply Voltage | +5V DC ± 5% |
| Current Rating | 100mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |

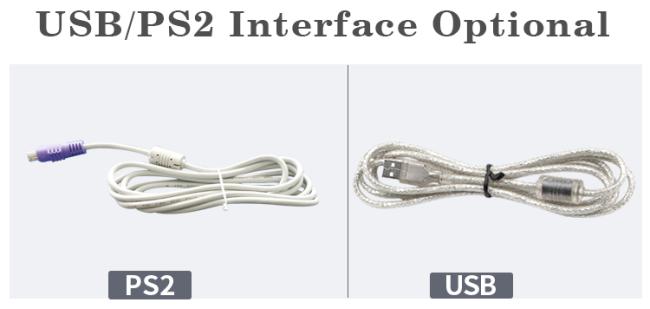

| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
