Vandal Resistant High 800 Dpi Optical Trackball Pointing Device Stainless Steel Long Use Life

Price Negotiable

Price: To be quoted

MOQ: 1pc

Delivery Time: ASAP Within 2 weeks upon payment confirmed

Brand: IKB-MKB

Product Description

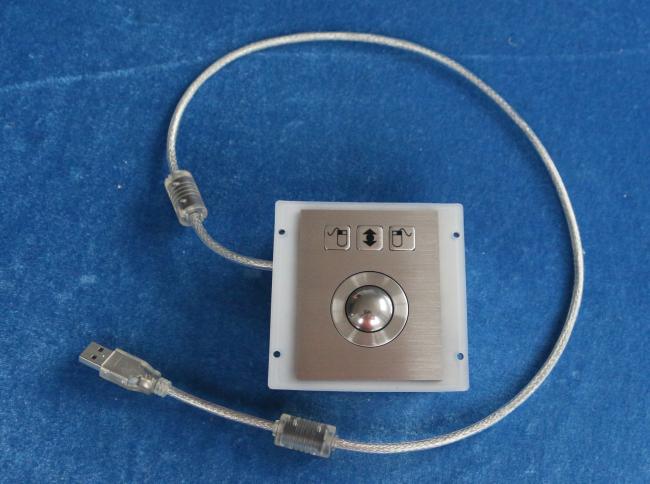

IP67 dynamic rated vandal proof stainless steel with high 800 DPI optical trackball

MODEL NO.: K-TEK-B65-25-OTB-DWP

DIMENSIONS: 65.0mm x 80.0mm(Front panel)

MAIN FEATURE:

Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
All Metal Mechanical provide for rugged, smooth, long lasting and no noisy operation.
Optical Encoders provide high resolution more than +800 DPI, fast and reliable positioning data.
Available 25mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning.
Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
Can be mounted horizontally, and vertically or any other directions.
No metal bearings inside, operation is very smooth, and easy without any noise.

TECHNICAL SPECIFICATION:

ITEM		SPECIFICATION
Mechanical	Key	3 keys, quality brushed stainless steel
	Key top style	Non-protuberant rectangular Keys,
	Front Plate	Quality brushed stainless steel
	Key Travel	0.45mm
	Ball diameter	25.4mm/1.0' (19mm, 25mm, 36mm 40mm, 50mm also available)
	Key switch lifespan	more than 5 Mio actuations
	Track ball lifespan	> 10 Mio revolutions

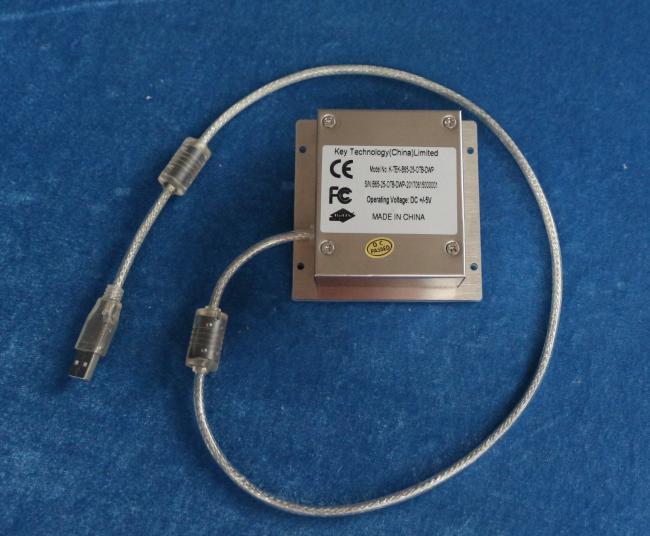

	Back Metal Cover	Rear side integrated electronics protected by a metal cover
	Actuation Force	1.0N to 3.0N
	Mounting Rack	Stainless steel

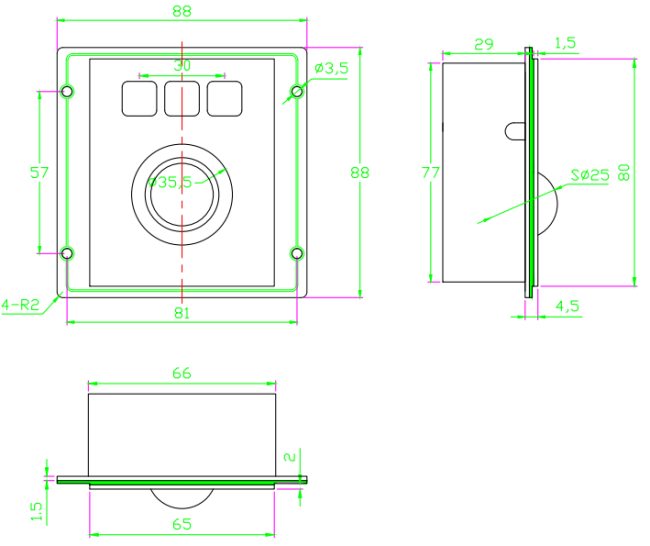

	Dimension	Dimensions with 25mm track ball, Front plate (W x H): 65.0 x 80.0mm, Overall (W x H x D): 90.0 x 90.0 x 29.5mm
Interface	PS2, USB are available, Y type cable with ports of PS2 and USB
Electrical	Power supply	5V DC+ 10%, keyboard interface
	Protection level	IP68 (dynamic), NEMA3
	EMC Standard	EN55022(B)
	Power consuming	≤1.00W(dynamic)
	Power consuming	≤0.2W(static)
	Contact Material	Gold-on-Gold
Environmental	Operating temperature	-20ºC~+ 60º C
	Storage temperature	- 30ºC~+ 70ºC
	Operating RH	30～90%
	Atmospheric pressure	60～106Kpa.
Reliable	Certificates	RoHS compliant, CE and FCC certified. ESD
	MTBF	>50000h
	MTTR	< 30min
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details	Each unit to a suitable brown box, suitable brown boxes to a standard export carton.
