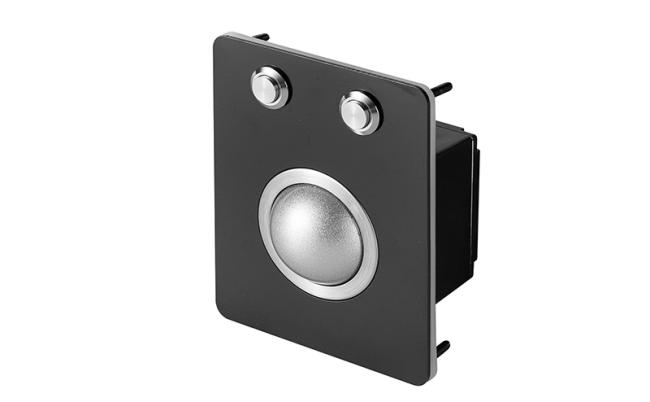

Stainless Steel Black Optical Trackball Pointing Device Vandal Proof And Weatherproof
Stainless Steel Black Optical Trackball Pointing Device Vandal Proof And Weatherproof
MODEL NO: K-TEK-B78-38-OTB-BT-DWP
MAIN FEATURE:
- The keyboard can be dynamic washable with water and other liquids, it can work well even under water with 2.0mm depth after 8 hours dynamic water proof testing.
- Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
- All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
- Laser Encoders provide high resolution more than +800DPI, fast and reliable positioning data.
- Available 38mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning without any noise.
- Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
- Can be mounted horizontally, and vertically.
- No metal bearings inside, operation is very smooth, and easy without any noise.
TECHNICAL SPECIFICATION:
| ITEM | SPECIFICATION | |
| Mechanical | Key | 2 keys, IP65 dynamic quality stainless steel button |
| Key top style | sealed round stainless steel buttons with tactile feeling | |
| Front Plate | Quality brushed stainless steel | |
| Key Travel | 1.00 mm | |
| Ball diameter | 38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available) | |
| Key switch lifespan | more than 10 Mio actuations | |
| Track ball lifespan | > 10 Mio revolutions | |
| Actuation Force | 1.0N to 3.0 | |
| Mounting Rack | top stainless steel plate with mounting screw bolts | |
| Dimension |
Dimensions with 38mm track ball, Front plate (W x H): 78.0mm x 100.0mm |
|
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
| Electrical | Power supply | 5V DC+ 10%, mouse interface |
| Protection level | IP65 dynamic (front panel), NEMA3, IK10 | |
| EMC Standard | EN55022(B) | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Contact Material | sealed stainless steel buttons | |
| Environmental | Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30～90% | |
| Atmospheric pressure | 60～106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified, ESD |
| MTBF | >50000H | |
| MTTR | < 30min | |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | |
| Packing Details | Each unit to a suitable brown box, suitable brown boxes to a standard export carton. | |
DESCRIPTION:
IP67 dynamic rated compact format vandal proof stainless steel optical trackball with IP65 dynamic sealed & ruggedized stainless mouse buttons and IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, with rubber sealing gasket under top stainless steel plate for easy sealing and tightly mounting with cabinet, stainless steel top plate with threaded bolts for top panel mounting solution. High quality durable black titanium electroplated on the top stainless steel plate with threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
Actual Photos:
