IP67 0.45 Mm Metal Keypad , Embedded Stainless Steel Waterproof Keyboard For Industrial
Embedded stainless steel IP67 compact 5 keys water/vandalproofl function industria keypad
DESCRIPTION:
IP67 rated dynamic water proof 5 keys vandal proof Stainless Steel industrial matrix function keypad
Rear stainless steel back plate with mounting holes and water-tight rubber sealing gasket for easy sealing and tightening with cabinet, rear panel mounting.
Ruggedized metal dome PCB with gold-on-gold key switch technology
Short stroke 0.45mm with excellent tactile feeling.
Industrial backlight included. (Red/blue/white/green optional).
Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 135.0mm x 30.0mm
MAIN FEATURE:
- Stainless steel function keypad
- • Water, dust and vandal resistant
- • Etching and laser carving lettering
- • Brushed surface
- • Compatible with WINDOWS98/ME/2000/XP
- • Designed for public, outdoor, industrial and other extreme surroundings
- • Can be cleaned with soapy water, disinfectant or other cleaning agents
- • 2 year warranty, can be extended
APPLICATION:
- unsupervised or semi-supervised positions of varied access applications,
- Internet public phones etc.
- ticket vending machines, gas stations, cash machines (ATMs/CDM),
- internet terminals and information kiosks at universities,
- Check-in Kiosk, Info-Kiosk, Internet Kiosk, Medical Kiosk, Industrial Control Platform and Gaming Machine.
- shopping malls, hotels, banks, airports, railway-stations and other public areas,
MECHANICAL DATA:
| Front plate | 1.5mm thickness super quality brushed stainless steel |
| Back plate | Super quality 316L stainless steel |
| Actuator/Keys | 5 keys, 1.50mm thickness super quality 316L stainless steel flat key |
| Key top style | protuberant rectangular keys, with laser engraved and etched legends and raised braille dots available. |
| Key size | 14.0mm x 14.0mm for normal keys |
| Switching material | Gold-on-Gold key switch technology PCB |
| Actuation Force | 2.0N+/-0.1N for key 10.0mm x 10.0mm (pressure point) |
| Key Travel | 0.45mm |
| Switch life | more than 5 million of operations |
| Dimensions | 135.0mm x 30.0mm (L x W ) |
| G.W. | 0.35KGs |
ELECTRICAL DATA:
| Supply Voltage | +5V DC +/-5% |
| Current Rating | appr. 150mA |
| EMC Standard | It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004 |
| EMI | EN 55022: 2010 |
| EMS | EN 55024:2010 |
| Lifespan | > 5 years |
| Switch Contact Material | Gold-on-Gold key switch technology PCB |
| Interface |
1 x 5 dot matrix |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
ENVIRONMENTAL ADAPTABILITY:
· Operating temperature:-20oC to +60oC
· Storage temperature: -30oC to +70oC
· Operating RH: 30-90%
· Atmospheric pressure: 60-106Kpa.
· Saline mist: 96 hours, IEC 60512-6
· Damp heat test at + 40oC: 21 days, IEC 60512-6
· Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY:
· RoHS Compliant, CE and FCC, ESD
· Protection Level: IP67(front panel)
· Vandal resistant IK09
· Key Lifespan >10 million actuations
· MTBF >50000H
· MTTR <30min

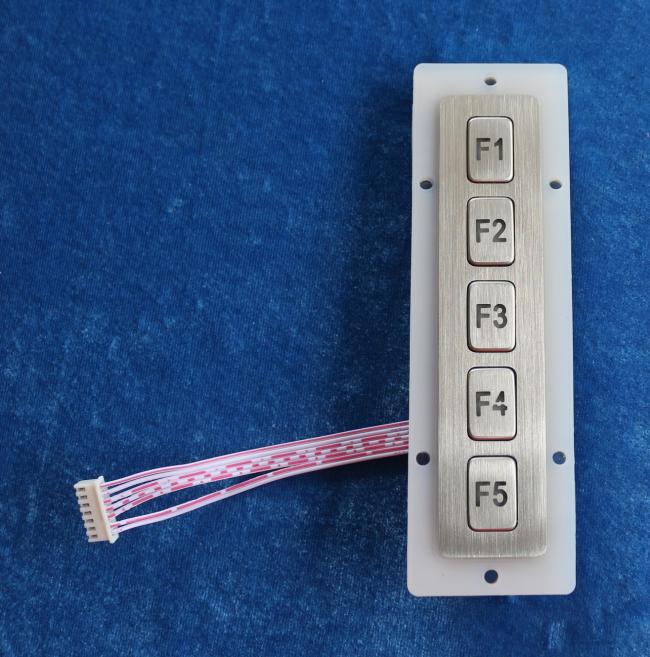

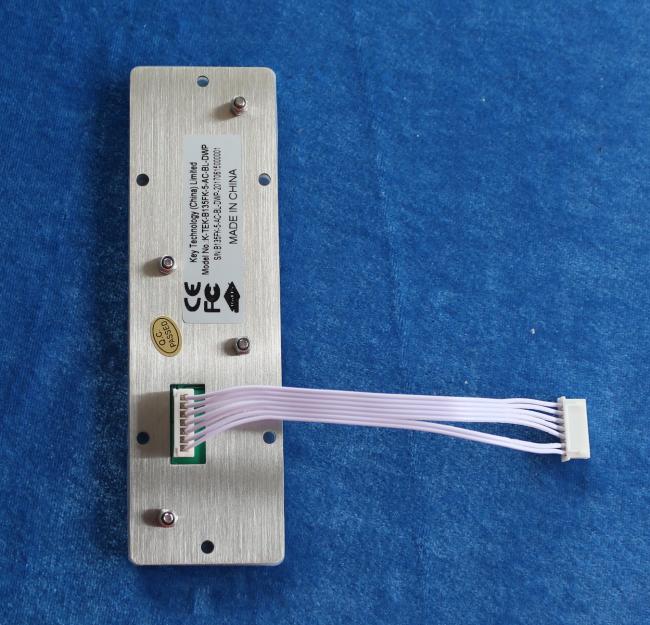

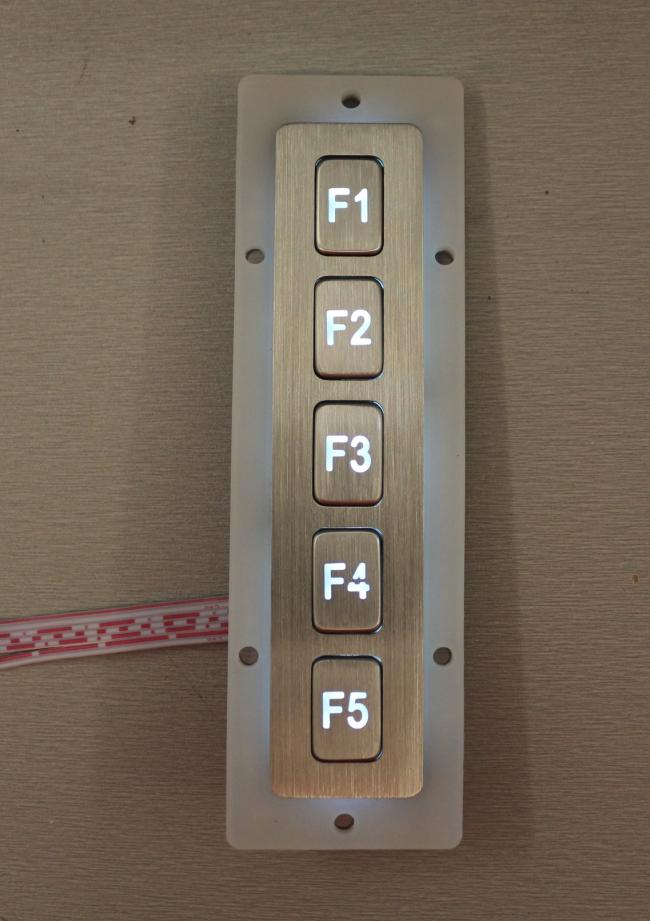

Actual Photos:
