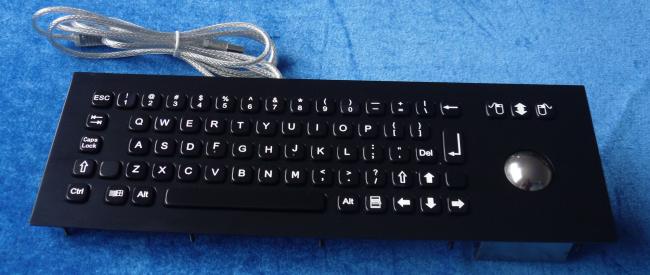

Black Embedded Waterproof Wire Keyboard 1.5mm Thickness Front Plate
PS2 / USB Available Custom waterproof Sealed Black Titanium Electroplated Keyboard
DESCRIPTION:
IP67 dynamic embedded waterproof and vandal proof 71 keys compact format metal keyboard
All international language lay-out are optional.
One compete silicone rubber for easy mounting & sealing tightly with cabinet.
Material: super quality SUS304 stainless steel.
Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise.
3 mouse buttons high quality durable black titanium electroplated on the top stainless steel plate and all keys, designed for right & left clicking and scrolling up and down with ball rolling,

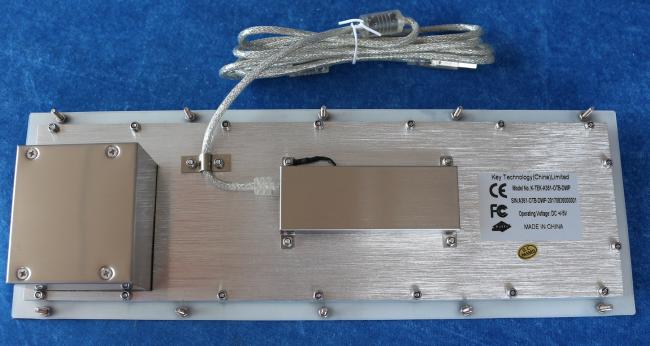

Rear panel mounting solution.
IP68 dynamic rated washable 38.0mm stainless steel laser trackball module-1200 DPI resolutions,
DIMENSIONS: 361.0mm x 125.0mm (front panel)
ELECTRICAL DATA:
| Supply Voltage | +5V DC +/-5% |
| Current Rating | appr. 30mA |
| EMC Standard | It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004 |
| EMI | EN 55022: 2010 |
| EMS | EN 55024:2010 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All windows, Linux, Unix, Mac OSX |
MECHANICAL DATA:
| Actuator/keys | 71 keys, super quality SUS304 brushed stainless steel |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
| Key travel | 2.0mm |
| Actuation Force | 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
| Switch life | more than 10 million of operations |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 3.0mm thickness brushed & oxidized aluminum |
| Tracker ball | 38.0mm stainless steel laser trackball module with 1200 DPI resolutions |
| G.W. | 2.00KGs |
| Dimensions | 361.0mm x 125.0mm |
RELIABILITY:
· RoHS Compliant, CE and FCC, ESD
· Protection Level: IP67(front panel)
· Vandal resistant IK09
· Key Lifespan >10 million actuations
· MTBF >50000H
· MTTR <30min
ENVIRONMENTAL ADAPTABILITY:
· Operating temperature:-20oC to +60oC
· Storage temperature: -30oC to +70oC
· Operating RH: 30-90%
· Atmospheric pressure: 60-106Kpa.
· Saline mist: 96 hours, IEC 60512-6
· Damp heat test at + 40oC: 21 days, IEC 60512-6
· Dry heat test at + 85oC: 10 days, IEC 60512-6
