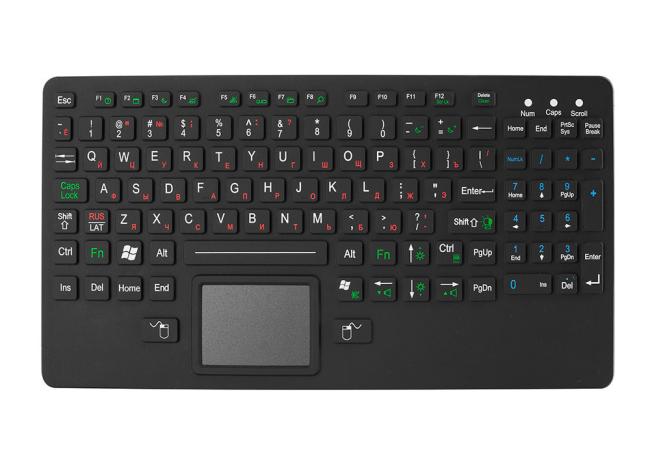

Silicone Rubber Industrial Keyboard With Touchpad For Industry Military Medical
Silicone Rubber Industrial Keyboard With Touchpad For Industry Military Medical
Model NO: K-TEK-M317TP-KP-AC-FN-BL-UT-ML-OEM
DESCRIPTION: 110 keys IP67 dynamic sealed and ruggedized silicone rubber keyboard with matrix FPC flex cable, with carbon-on-gold key switch
technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, withdurable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mounted with top ruggedized industrial silicone cover & military matrix PCB for ruggedized structure and easy mounting and sealing, adjustable industrial backlight included, military level.
Dimensions: 317.00mm x 170.00mm (L x W )
| MECHANICAL DATA | |
| Key: | 110 keys |
| Key top style: | Protuberant rectangular keys with tactile feeling. |
| Lifetime: | More than Lifetime 10 million strokes |
| G.W.: | 0.50KGs |
| Dimensions: | 317.00mm x 170.00mm (L x W ) |
| ELECTRICAL DATA | |

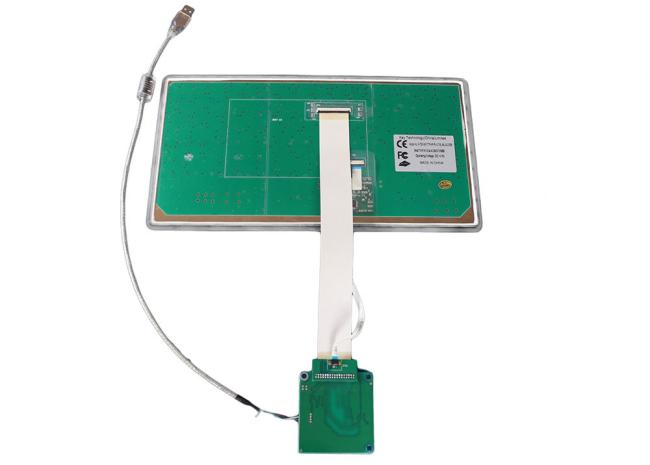

| Switch Contact Material: | Carbon-on-Gold key switch technology with gold PCB. |
| Interface: | matrix FPC, PS2 & USB optional. |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature: | -40℃ to +80℃ |
| Storage temperature: | -50℃ to +90℃ |
| Operating RH: | 100% |
| Atmospheric pressure: | 60-106Kpa |
| Shock: | 3 x 11 ms pulses of 50g on each of 3 axes |
| Vibration: |
POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours |
| Flammability: |
PRINTED CIRCUIT BOARD: 94 V-0 SILICONE OVERLAY: 94HB INTERFACE CABLE: 94HB |
| RELIABILITY | |
| Certificates: | RoHS , CE, FCC, ESD |
| Protection Level: | IP67, NEMA 6P |
| Key Lifespan: | >10 million actuations |
| MTBF: | >50000H |
| MTTR: | <30min |
MAIN FEATURES:
- keyboard with NVIS-compliant yellow adjustable backlighting, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
- Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality.
- The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
- Special durable-coating for excellent mechanical and chemical resistance.
- With firm tactile key feel, key travel 1.50mm key travel.
- Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
- Ease of customizing with multiple languages, to accommodate foreign or custom variants.

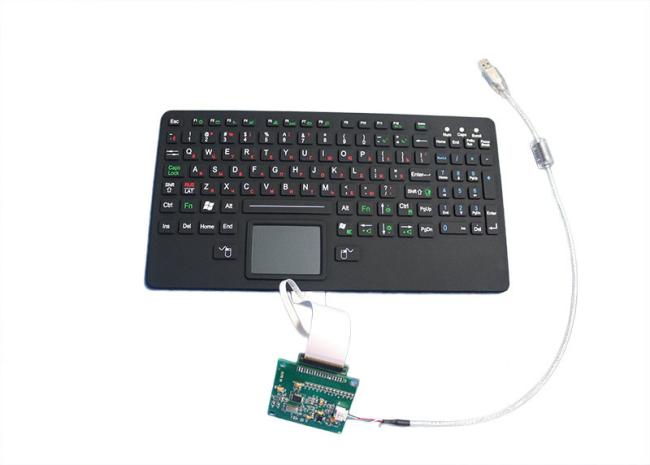

- FPC for connecting separate electronics controller.
- Enclosure: industrial silicone
- Key life: 5 millions
APPLICATIONS:
This ruggedized and compact design keyboard can be good for working in low-light areas, it is also available with optional LED backlighting. This keyboard is ideal for below wide applications:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
