IP65 Black Marine Keyboard Backlit Vandal Resistant Stainless Steel Rugged

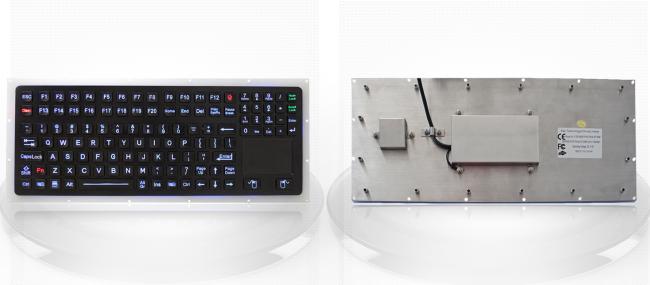

IP65 Black Stainless Steel Industrial Marine Illuminated Backlit Keyboard with Touchpad
DESCRIPTION: 116 keys compact format IP65 dynamic water proof vandal proof stainless steel industrial keyboard with
durable polymer keys with full keyboard functionalities, IP65 dynamic sealed & ruggedized rough touch pad for fast and accurate cursor position. function keys F1, F2, ...F19, F20 are on the top line for easy operation, sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke 1.20±0.10mm with extremely good tactile feeling for fast and accurate data input without any noise,individual numeric keypad integrated, one complete silicone rubber alone the rear stainless steel plate for easy mounting and sealing tightly with cabinet, rear panel mounted. High quality scratch-proof durable black titanium electroplated on the top stainless steel plate, stainless steel back plate with holes for rear mounting solution. Adjustable backlight included (RED, BLUE, WHITE etc.), Which is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water, oil,dirty and salt mist etc.
Dimensions: 360.0mm x 144.0mm (front panel)
| RUGGED KEYBOARD MECHANICAL DATA | |
| Keys | 116 keys(Including 2 mouse buttons),durable polymer keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.2mm for space bar |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 2.0N±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5 N±0.20N for key 14.0mm x 28.0mm (pressure point) |
| Switch life | more than 5 million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Front Plate: | 1.5mm thickness super quality brushed stainless steel with black titanium surface treatment |
| Back Plate: | 1.5mm thickness super quality brushed stainless steel |
| G.W. | 2.0KG |
| MARINE KEYBOARD ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA (with backlight off) ,300mA (with backlight on) |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable lengh | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 dynamic |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
