Industrial Koisk Metal Mechanical Keyboard Black IP67 Rated Washable Top Mounted
Black IP67 Rated Washable Top Mounted Industrial Koisk Metal Keyboard
MODEL NO.: K-TEK-B340KP-FN-BT-DWP
DESCRIPTION:
81 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with integrated numeric keypad, and stainless steel top plate with threaded bolts for top panel mounting solution. High quality durable black titanium electroplated on the top stainless steel plate. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 340.0mm x 145.0mm (front panel)
We provide customized service ,more details please click"Contact Now ",we are
online and will reply you ASAP !
our working time :8:30 am -18:00 pm, from monday to friday (BeiJing Time )
| MECHANICAL DATA | ELECTRICAL DATA |
| Actuator/keys: 81 keys, 1.5mm thickness super quality SUS304 brushed stainless steel flat key. Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar. Key travel: 0.45mm Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) , 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point) Switch life: more than 1 million of operations. Front Plate: 1.5mm thickness super quality brushed stainless steel Back Plate:1.5mm thickness super quality brushed stainless steel G.W.: 1.40KGs Dimensions: 340.0mm x 145.0mm (L x W ) |
Supply Voltage: +5V DC +/-5% Current Rating: appr. 30mA EMC Standard: EN 55032:2015, EN 55035:2017 Lifespan > 5 years Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology Interface: PS2, USB available OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature:-20℃ to +60℃ Storage temperature: -30℃ to +70℃ Operating RH: 30-90% Atmospheric pressure: 60-106Kpa. Saline mist: 96 hours, IEC 60512-6 Damp heat test at + 40℃: 21 days, IEC 60512-6 Dry heat test at + 85℃: 10 days, IEC 60512-6 |
|
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD Protection Level: IP67 Vandal resistant IK09 Key Lifespan >1 million actuations MTBF >20000H MTTR <30min |
|

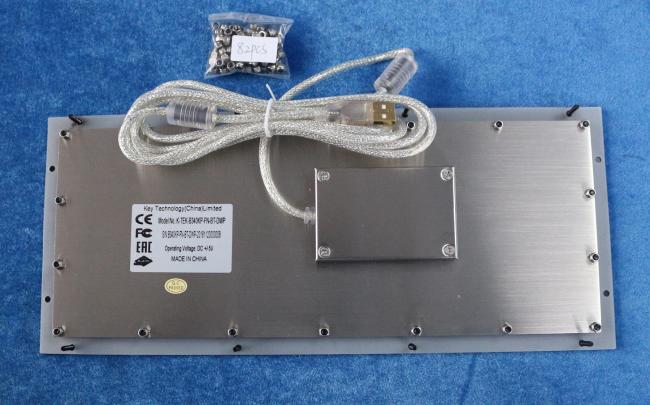

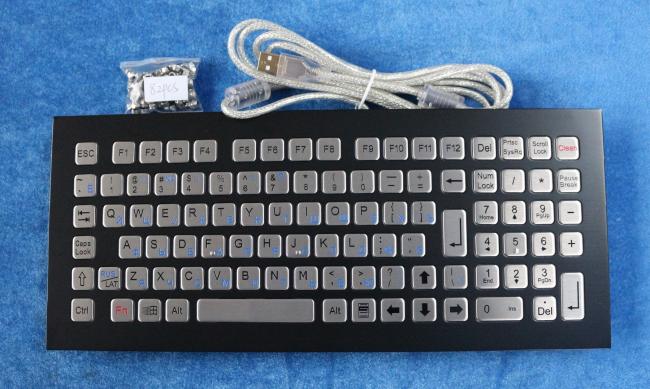

Product Pictures:

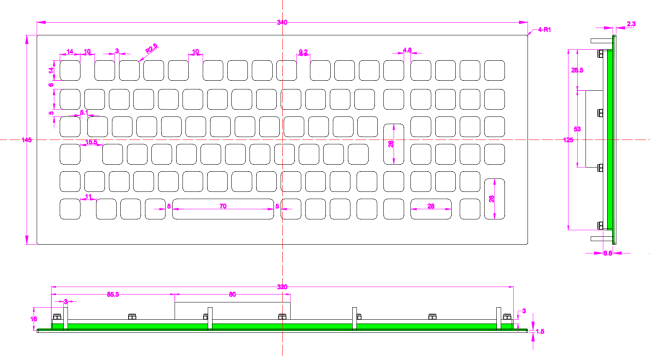

Mechanical Drawing:
