IP68 Dynamic Sealed Stainless Steel Waterproof Touchpad Stand Alone Desktop Type
Ip68 Dynamic Sealed Waterproof Stand Alone Desktop Stainless Steel Touchpad
MODEL NO.: K-TEK-B107TP-DT-DWP
DESCRIPTION:
IP68 dynamic sealed and stainless steel ruggedized tough touchpad with IP67
dynamic sealed stainless steel mouse buttons, with movable stand alone desktop version or mountable stand alone desk top versions with stainless steel housing. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 107.0mm x 110.0mm x 31.3mm (L x W x H)
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | ||
| Mechanical | Front Plate | Quality brushed stainless steel | |
| Touchpad thickness | 1.2 mm PCB thickness inclusive of mylar layer | ||
| Validated touch width | 45.0mm (max) | ||
| Validated touch length | 60.0mm (max) | ||
| Mounting Rack | Movable stand alone desktop version | ||
| Back Metal Cover | Rear side integrated electronics protected by a metal cover | ||
| Touchpad lifespan | > 5 years | ||
| Dimensions | Touchpad: 60.0mm x 45.0mm; Front Mounting Panel: 107.0mm x 120.0mm (front panel) | ||
| Interface | PS2 and USB both available | ||
| Electrical | Power supply | 5 VDC ± 0.25V | |
| Work current | 17 mA (normal) | ||
| X/Y position sensing resolution: | 1000 points/inch (40 points/mm) | ||
| X/Y position reporting: | Relative | ||
| Tracking speed: | Maximum 1,016 m/sec | ||
| Protection level: | IP68 dynamic (front panel) | ||
| Static Release: | 15 KV (front panel) | ||
| EMC Standard: | EN 55032:2015, EN 55035:2017 | ||
| Environmental | Operating temperature: | -20°C to +60°C | |
| Storage temperature: | - 30°C to + 70°C | ||
| Operating RH: | 10%-95% | ||
| Atmospheric pressure: | 60-106Kpa | ||
| Reliability | MTBF | >20000H | |
| MTTR | < 30min | ||
| Key Switch Lifespan | >1 million | ||
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) | ||
| Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. | ||

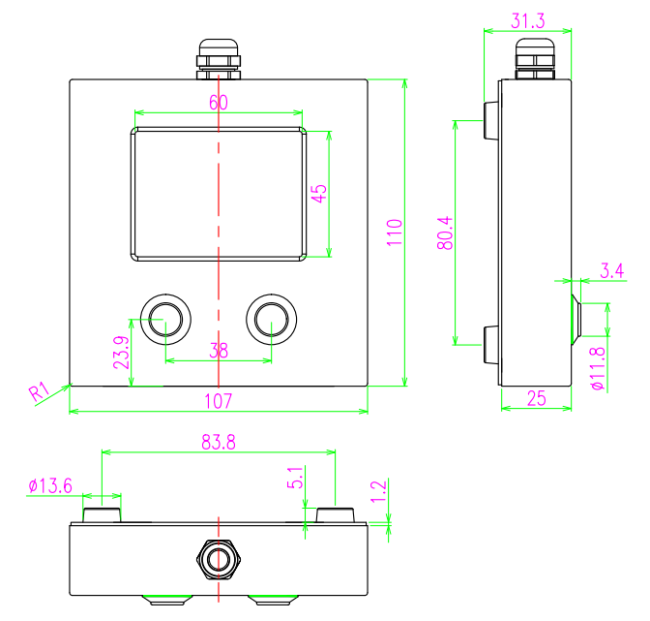

Mechanical Drawing:
