2 Keys Rugged Industrial Touchpad Silicone Rubber Waterproof Pointing Device IP65
IP65 Rugged Silicone Touchpad Industrial Waterproof Pointing Device
DESCRIPTION: IP65 dynamic Sealed and Ruggedized Rubber Touchpad for fast and accurate cursor position, with 2 raised
| Keys: | 2 keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Touchpad Cover: | Composite Mutual Capacitance sensing |
| Switch life: | More than 5 million of operations |
| X/Y Position Resolution: | 1000 points/inch(40 points/mm)(graphics tablet mode) |

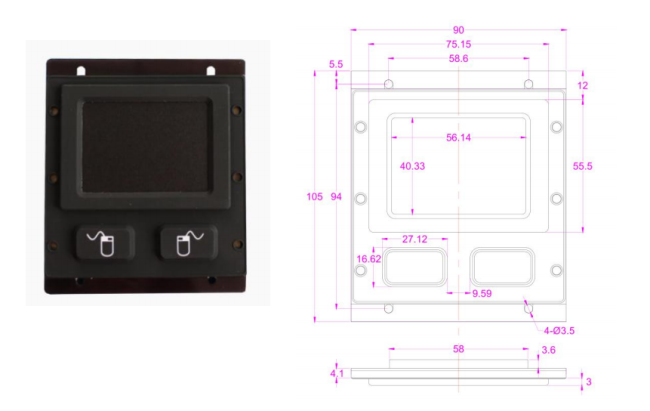

| Validated touch width: | 40.33mm (max) |
| Validated touch length: | 56.14mm (max) |
| Output (self-detectable depending on cable): | PS2 or USB |
| Cable Length: | 2.0m |
| G.W.: | 0.50KGs |
| Supply Voltage: | +5V DC +/-5% |
| Current Rating: | 17 mA |
| EMC Standard: | EN 55032 : 2015 , EN 55035: 2017 |
| Lifespan | > 5 years |
| Switch Contact Material: | Carbon-on-Gold key switch technology with gold PCB |
| Interface: | PS2, USB available |
| OS: | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
| Operating temperature: | -20℃ to +60℃ |
| Storage temperature: | -30℃ to +70℃ |
| Humidity: | 5%--95% |
| Atmospheric pressure: | 60-106Kpa |
APPLICATIONS:
- MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
- MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
- MILITARY: Army, Navy, Air force
- INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
- OTHER INDUSTRIES

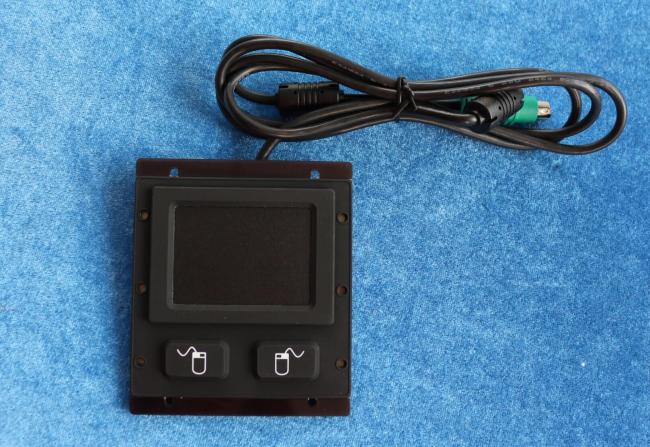

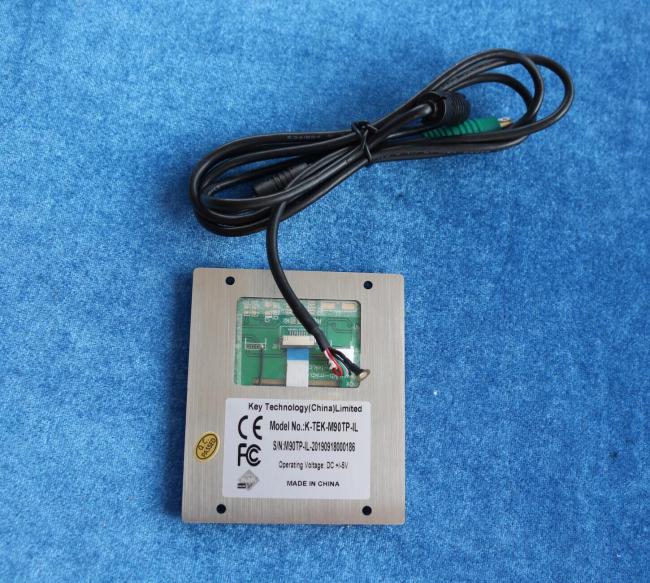

ACTUAL PHOTOS:
------------------------------------------- Our Certifications: -------------------------------------------------------
------------------------------------------------------Company Tour ----------------------------------------------------
FAQ
Q1) Are you factory ?
A:Yes ! Key Technology (China) Limited is a professional manufacture in Rugged keyboards for more than 14 years. Our Innovative design and superior quality make Key Technology popular all over the world.
Q2) Can you customize the surface and program of your product according to my requirements?
A:Yes. You need to provide the surface draft !
Q3) Is your keyboard waterproof ?
A:We do have waterproof metal keyboards with degree IP65-IP68.
Q4) Can you do a sample for me?
A: Yes, we can make you a sample for your approval.
