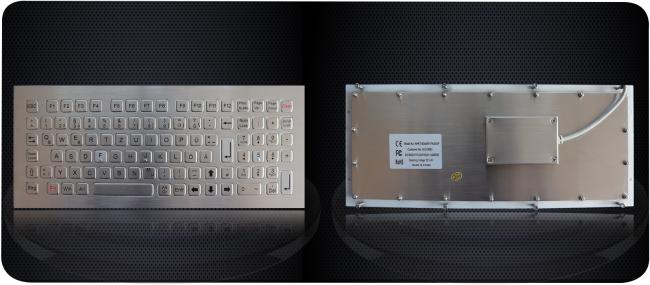

Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk
Stainless Steel Keyboard SUS304 For Outdoor Kiosk
DESCRIPTION: 99 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial metal dome PCB with gold-on-gold key switch technology with short stroke short stroke (0.45±0.05mm) with excellent tactile feeling for stable and accurate data input, with 12 function keys(F1, F2..F10, F11, F12) on the top panel for easy operation, with integrated numeric keypad, and stainless steel top plate with threaded bolts and water-tight gasket for easy & tightened sealing, with top panel mounting solution.Industrial Backlight (red/blue/white/green) optional. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 340.0mm x 145.0mm ( Front panel)
| MECHANICAL DATA | |
| Actuator/keys | 99 keys |
| Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
| Key travel | 0.45±0.05mm |
| Actuation Force | 3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point) |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 2.0mm thickness super quality brushed stainless steel |
| Switch life | more than 1 million of operations |
| G.W. | 2.00KGs |
| METAL KEYBOARD ELECTRICAL DATA | |
| Supply Voltage | +5V DC ± 5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Gold-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| INDUSTRIAL KEYBOARD RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal resistant | IK09 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
