38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball
38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball
APPLICATIONS
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MILITARY: Army, Navy, Air force
MARINE: Ship, Fleet, Navigation controls
MAIN FEATURE
Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
TRACKBALL POINTING DEVOCE TECHNICAL SPECIFICATION:
| ITEM | SPECIFICATION | |
| Mechanical Data | Ball diameter | 38mm/1.50’' |
| Track ball lifespan | > 5 years | |
| Dimension | 38 .1 mm diameter for ball | |
| Interface | PS2, USB are available | |
| Trackball Electrical | Power supply | +5V DC +/-5% |
| Protection level | IP65 (static) | |
| EMC Standard | EN 55032:2015, EN 55035:2017 | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Environmental | Operating temperature | -40ºC~+ 75º C |
| Storage temperature | -45ºC~+ 85ºC | |
| Operating RH | 30～90% | |
| Atmospheric pressure | 60～106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified |
| MTBF | >20000h | |
| MTTR | < 30min | |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android | |
| Trackball Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. | |

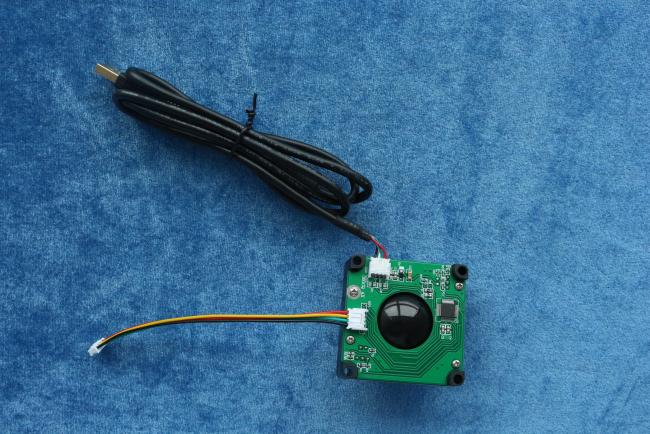

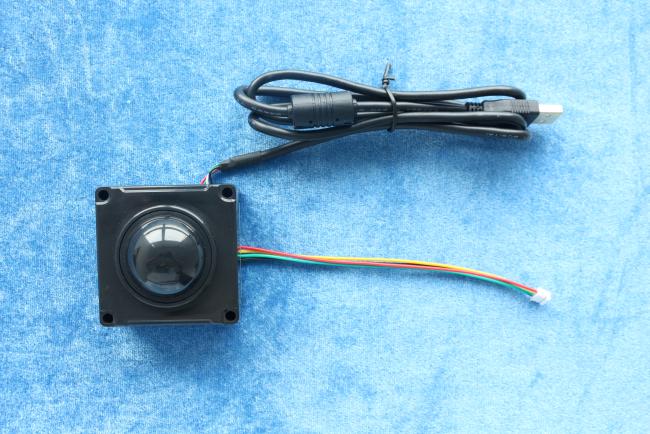

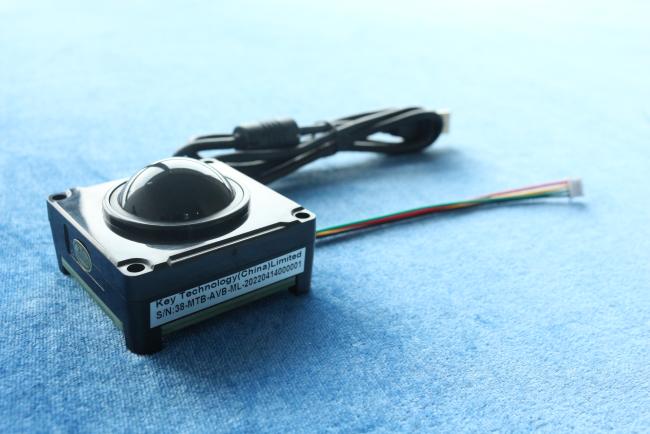

TRACKBALL PICTURE:
