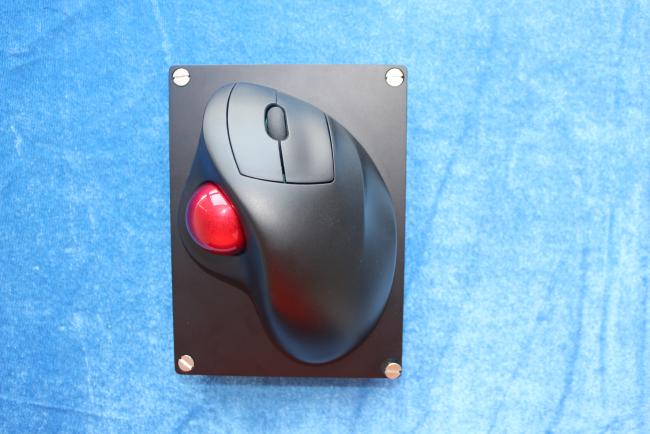

Military IPX6 Rated Ergonomic Wireless Trackball Mouse CNC Aluminum Rugged Back Plate
Military IPX6 Wireless Trackball Mouse CNC Aluminum Mounting Plate USB Interface
Model NO.: K-TEK-M112-OTB-NV-151B
DESCRIPTION: IPX6 rated ergonomic military mouse with 3 mouse buttons for right/left clicking, as well as middle wheel for scrolling function, integrated with a 34mm optical trackball module with 500~1000 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, the DPI can be automatically adjusted and switched by sensing the moving speed of the trackball (resolution of 500, 800, 1000 optional) to meet requirements. With fully sealed and CNC aluminum rugged back plate, oxidized painting surface treatment, wear-resistant, antibacterial, and anti-salt spray features. With threaded bolts for top panel mounting solution and 4 x R3 angles to be smooth and scratch proof. USB output/aviation plug or other customized connector optional. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity), with strong anti-interference and low radiation ability.
DIMENSIONS: 112.00mm x 150.00mm(top panel)
TECHNICAL SPECIFICATION
| MECHANICAL DATA | |
| Keys | 3 keys |
| Key switch | Omron micro key switch technology |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 2.5N±0.2N |
| Trackball | 34mm ergonomic handheld thumb ball |
| Trackball lifespan | > 2 millions scrolling |
| Protection level | IPX6 |
| G.W. | 0.6KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 80mA |
| EMC Standard | MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) |
| Lifespan | > 5 years |
| Interface | Aviation plug, USB available |
| Cable length | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc: | |
| CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | |
| CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | |
| CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | |
| CS106 Conducted Susceptibility, Transients, Power Leads | |
| CS112 Electrostatic Discharge Susceptibility | |
| CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | |
| CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | |
| CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | |
| RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | |
| RE102 10kHz - 18GHz Radiated Emissions, Electric Field | |
| RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | |
| RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | |
| MIL-STD-810F (wide temperature, shock, salt mist, vibration, salt mist, fungus, humidity). | |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
|
RoHS, CE, FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) |
|
| Protection Level | IPX6 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
