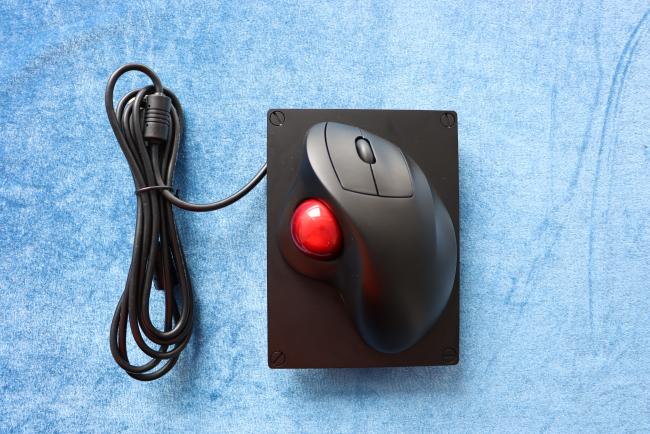

IP52 Ergonomic Industrial Trackball Mouse 34.0mm Panel Mounting USB Interface
Description: IP52 rated ergonomic industrial mouse with 3 Omron key switch mouse buttons for right/left clicking, as well as middle wheel for scrolling function, integrated with a 34mm optical trackball module with 400 ~ 2000 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, the DPI can be automatically adjusted and switched by sensing the moving speed of the trackball (resolution of 400, 800, 1200, 1600 optional) to meet requirements. With fully sealed and CNC aluminum rugged back plate, oxidized painting surface treatment, wear-resistant, antibacterial, and anti-salt spray features, which also meets with working temperature of - 20℃~ +60℃, and storage temperature of -30℃~ +70℃, suitable for installation in any direction. Rugged black color aluminum mounting plate with 4 sinking holes for easy mounting to user's device, top panel mounted solution. USB output/aviation plug or other customized connector optional.
DIMENSIONS: 112.00mm x 150.00mm(top panel)
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | |
| Mechanical | Key | 3 keys |
| Plate | rugged black color aluminum mounting plate | |
| Key Travel | 0.50mm | |
| Ball diameter | 34.0mm | |
| Key switch lifespan | more than 5 Mio actuations | |
| Track ball lifespan | > 10 Mio revolutions | |
| Dimension | Dimensions with 34mm track ball, 112.00mm x 150.00mm | |

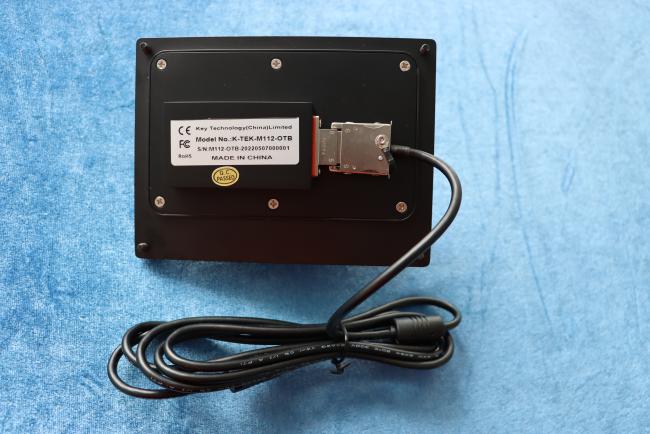

| Interface | USB interface, other customized connector optional | |
| Electrical | Power supply | +5V DC +/-5% |
| Protection level | IP52 | |
| EMC Standard | EN 55032:2015, EN 55035:2017 | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Environmental | Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30～90% | |
| Atmospheric pressure | 60～106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC, ESD certified. |
| MTBF | >20000h | |
| MTTR | < 30min | |
| OS | All Windows,Linux | |
| Packing Details | Each unit to a suitable brown box, suitable brown boxes to a standard export carton. | |
MAIN FEATURE
Use the thumb to operate easily and flexibly;
Automatically sense the moving speed of the trackball and automatically adjust the cursor speed;
The cursor speed can be switched (the initial cursor speed is 400 counts);
Can be installed horizontally or vertically
Without metal bearings for smooth and easy operation, without any noise;
