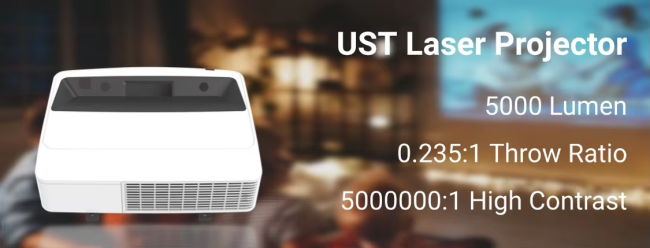

Ultra Short Focal 4K Laser Projector 3LCD Display Technology 5000LM For TV / Home Theater

Name: Ultra Short Focal 4K Laser Projector 3LCD Display Technology 5000LM For TV / Home Theater
Brand: Shenzhen SMX Display Technology Co.,Ltd

Price Negotiable

Price: USD1980/unit

MOQ: 1pc

Delivery Time: 15working day

Brand: SMX

Product Description

laser ultra short focal 4K Laser TV Laser Home theater 3LCD display technology 5000LM

Multi-resolution, providing full HD display

The high-definition resolution of WUXGA1920*1200 makes the screen display more delicate and vivid, and the document content is clearly visible.

Laser solid-state light source, 30,000 hours long life

The Venus LCD laser ultra-short-throw projector uses a laser solid-state light source to achieve an ultra-long service life of up to 30,000 hours. The attenuation curve of the laser light source is relatively gentle, so that the output image quality can maintain high brightness, saturation and contrast for a long time, and the color of the image is always clear and bright. The Venus LCD laser ultra-short-throw projector also uses a multi-laser module light source, which is not afraid of the failure of a single laser diode and is more stable. With a variety of laser modes, it can adapt to the ambient light of various scenes, and the brightness can be adjusted from 50% to 100%

Variable ultra-short distance, better display experience

0.235:1 ultra-short throw ratio, 20cm can project a 100-inch (WUXGA) picture, and the image is softer by the animation reflection effect, which effectively protects eyesight.

Key Features

*5,300 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio.

*High brightness and contrast with long life 20,000 hour Laser Light Source.

*Ultra Short Throw (0.235:1) manual focus lens.

*10-bit color processing, for superior color reproduction.

*Native WUXGA resolution. compatible with inputs up-to UXGA, WUXGA and 4K.

*Supports 4K video input via HDMl.

*Horizontal, Vertical & Corner Keystone Correction.

*Pincushion/Barrel & 6 point Geometric Correction.

*Built-in 16 Watt amplifier and speaker system. Closed Caption decoding.

*Compatible with Crestron RoomView" & AMX Device Discovery Technology.

*Wired network control and monitoring.

Specifications:


			Model

			MX-WPL500U

			Brightness

			Lumen

			5000

			Overall Spec

			Panel

			Display Panel

			3x0.64” with MLA

			Display Technology

			Liquid Crystal Display

			Native Resolution

			WUXGA (1920 x 1200)

			Light source

			Life time

			Normal mode

			20000hrs

			ECO1 mode

			30000hrs

			ECO2 mode

			30000hrs

			Projection

			Lens

			Lens Vendor

			RICOH

			F

			F1.7

			f

			2.84mm

			Zoom/Focus

			Manual

			Throw Ratio

			0.235:1

			Screen size

			80-120nch

			CR

			Contrast Ratio

			(FOFO)

			5000000:1

			Noise

			Noise(dB)

			37dB (Normal)

			30dB(ECO1)

			27dB(ECO2)

			Uniformity

			Uniformity(Actual Min)

			-JISX6911

			80%

			AR

			Aspect Ratio

			Native:16:10

			Compatible: 4:3/16:9

			Terminal(I/O port)

			Input

			VGA

			*1

			HDMI 1.4B(IN)

			*2

			USB-A

			*1

			USB-B

			*1(Display)

			RJ45

			*1 (Display)

			Audio in (mini jack,3.5mm)

			*1

			Output

			VGA

			*1

			Audio out

			(mini-jack,3.5mm)

			*1

			Control

			RS232

			*1

			RJ45

			*1 (Control)

			USB-B

			*1 (For upgrade)

			General Spec

			Audio

			Speaker

			16W*1

			Dust filter

			W/Filter

			Filter Life time

			8000h

			Power

			Consumption

			Power Requeirements

			100~240V@ 50/60Hz

			Power Consumption

			(Normal) (Max)

			380

			Power Consumption

			(ECO1) (Max)

			280

			Power Consumption

			(ECO2) (Max)

			230

			ECO Standby Mode

			Power Consumption

			<0.5W

			Temp.&Humidity

			Operating Temp.

			5 to 40°C

			Operating Thumidity.

			20-80%

			Store Temp.

			-10 to 50°C

			High altitude

			0~3000m

Contact us :We can provide 3LCD and LASER PROJECTORS from 3500 lumens to 20000 lumens with competitive prices. We also ODM projectors for some international brands like NEC, Panasonic, Sharp etc.

Welcome to contact us for any inquiry, OEM/ODM is available.

Website for SMX Projector: www.smxdisplay.com

Email: sales001@smxdisplay.com

Wechat/Whatsapp: 0086-18719043327
