2025 Electric Heating Series Centrifugal Hot Wind Heated Air Curtains For Doors 11-14m/s
Centrifugal Hot Wind Air Curtain
Specifications:
|
Model |
Size (mm) |
Volt./ Freq. |
Motor Power (W) |
PTC heater Power (kW) |
Air volume (m3/h) |
Air speed (m/s) |
Temp. rising (K) |
N.W (kg) |
|
|
Hi |
low |
||||||||
|
RM-4009S-3D/Y |
900x350x240 |
380v~ 50Hz |
410 |
350 |
12 |
1980 |
11-14 |
40-55 |
26 |
|
RM-4012S-3D/Y |
1200x350x240 |
520 |
460 |
16 |
2690 |
40-55 |
32.5 |
||
|
RM-4015S-3D/Y |
1500x350x240 |
670 |
610 |
20 |
3390 |
40-55 |
41.5 |
||
Feature:
Cooling (Normal air) or heating air can be chosen separately by remote control, suitable in all seasons.
Whole metal outer cover, high performance of fireproof; Top inlet and bottom wind outlet; Simple style design.
High Efficiency High heat, long life PTC heater, High conversion efficiency, Safety without light fire, Non-oxidation.
Quite centrifugal fan wheel and optimized motor ensure strong wind and prominent operation.
Safety & Reliability
Triplicate Security Protection: Thermal protector, Varistor and fuse; Automatic postpone safety protection when power off;
What is Air Curtain?

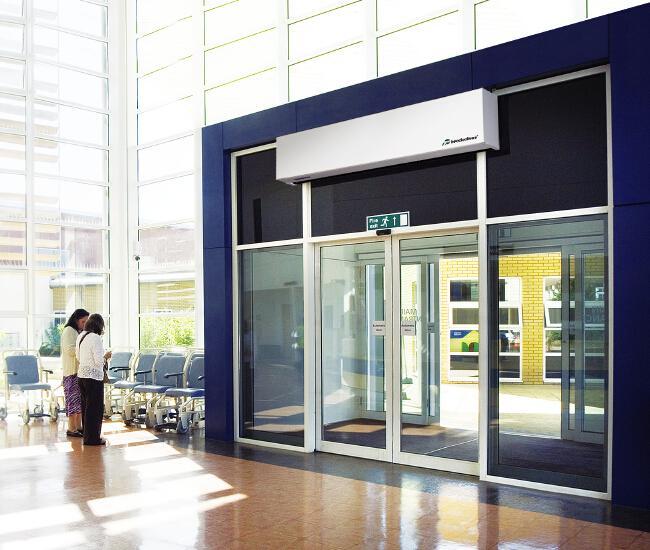

Theodoor Air curtain is installed above the entryway of store, restaurant, hotel...etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.
Applications: door entrance
| Business Organizations | Supermarket, largescale shopping malls, chain shops, department store, star-rated hotels, restaurants; |
| Public Places |
subway, airports, stations, bookstores, exhibition halls, stadiums, museums, commercial buildings, hospital; |
| Entertainments | Movie theaters, clubs, bars, cafes, Internet bars, beauty shops. |
