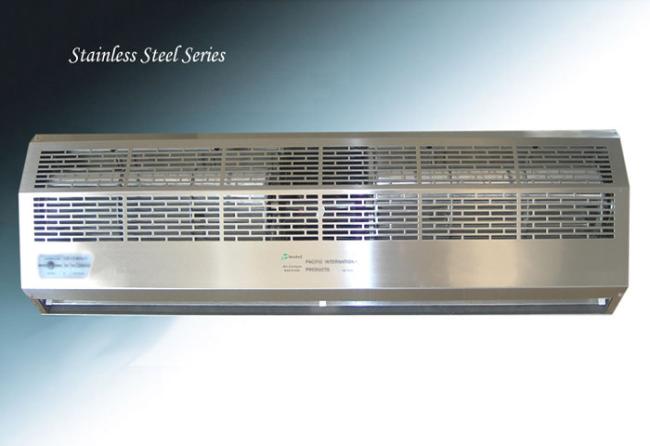

Stainless Steel Cover Entryway Commercial Overhead Door Air Curtain
Titan FM-15 Series Commercial Air Curtain In Stainless Steel Cover For Door Way
Feature
1. Compact design with metal cover, easy installation and simple maintenance.
2. The optimized fan wheel provides stable & even air flow. It has large air volume and low noise
performance.
3. The reliable designed motor, with overheating protector and has safety operation of 5000 hours
continuously without defect.
4. Adopting remote control or touch switch, it’s able to adjust high and low air velocity.
5. Two series available in different air velocity: 9-11m/s, 10-13m/s; Suitable for application in cafeteria,
bakery, waiting room, restaurants, retail shop, department store, sports center and so on.
Specifications:
|
Model |
VoltageV/ HZ |
Input power (W) |
Air Volume (m3/h) |
Air Speed (m/s) |
Noise (db) |
Net Weight (Kg) |
Size (mm) |
||
|
Hi |
Low |
Hi |
Low |
||||||
|
FM-1509SA1 |
120 /60 |
<230 |
2000 |
1600 |
13 |
10 |
<67 |
15 |
900X220X260 |
|
FM-1512SA1 |
<350 |
2800 |
2200 |
<69 |
19 |
1200x220x260 |
|||
|
FM-1515SA1 |
<430 |
3600 |
2800 |
<71 |
23 |
1500x220x260 |
|||
Photos

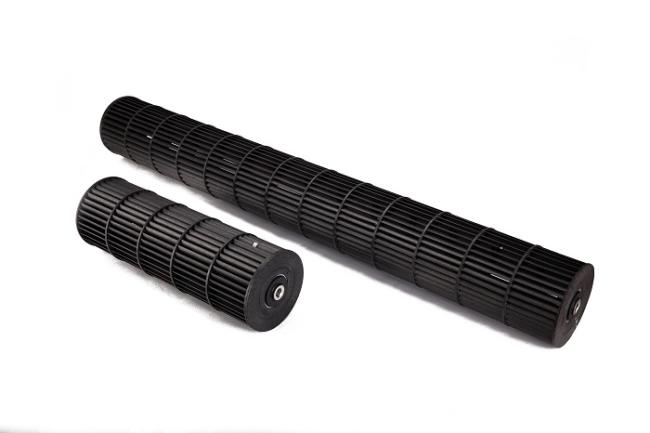

Fan materials: ABS plastic or Aluminum fan
Installation case: white color
