2025 Theodoor Titan 5 Series Air Conditioner Curtain Cortina De Ar For Commercial Entrance Exit Door Fan At 3m

Price Negotiable
Price: Negotiable
MOQ: 100PCS
Delivery Time: 30 working days
Brand: Theodoor
Product Description

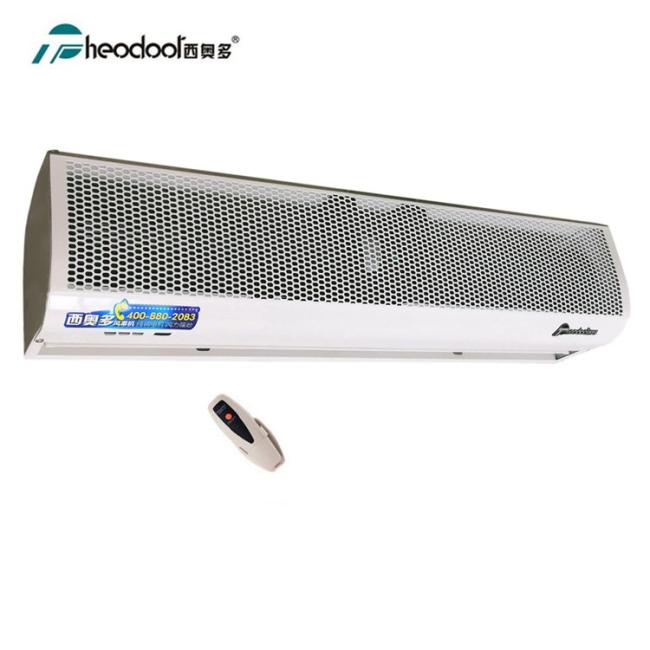

Theodoor Titan 5 Series Air Curtain Cortina De Ar For Commercial Door Fan At 3m

Feature:


Compact & slim structure design
Full metal cabinet, spray powder and anti-rust, easy to install and clean.

Stable performance
Pure copper high speed motor, reliable performance can operate continuously 5000h without failure.

Easy operation
Special design of air deflection vane enables to adjust the air direction easily. Two speeds controlled by the remote control or key switch.


Specifications:



Model

Voltage

V/ HZ

Input power
(W)

Air Volume
(m3/h)

Air Speed

(m/s)

Noise
(db)

Size
(mm)

Hi Low Hi Low
35 series: available door height: 2.5-3m 1400 1100 11 9 <57 900x185x187

FM-3509H/Y

220~
240 /50

<160
FM-3510H/Y <180 1600 1300 <58 1000x185x187
FM-3512H/Y <200 1900 1600 <58 1200x185x187
FM-3515H/Y <230 2500 2000 <59 1500x185x187
FM-3518H/Y <300 3200 2600 <60 1800x185x187
FM-3520H/Y <350 3600 2900 <60 2000x185x187


Applications:
Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air-conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.




Commercial use

Supermarket, shopping malls, department store, small store, hotels, restaurants, hospital,
schools; Movie theaters, fitness halls, clubs, bars, cafes, barbershop, waiting room,
subway, commercial building, museum entrance and more.

Industrial use

Factory, workshop, warehouse, spinning mill, frozen goods factory, paint factory, large
kitchen…etc.







Why choose us:


Experience: More than 18 years manufacture & export experience. More than 100 models air curtain, suitable for different environments.
Engineer: Professional R&D and engineer teams focus on Air curtain.
Machinery & technology: Advanced mould machines and equipments ensure products performance and reliability.
Materials and Quality: At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy conservation and environmental protection, and our rigorous testing ensure that we reach standards higher than similar products. We want consumers to depend on the precision and reliability of our Air Curtain machinery.
Quality control: 100% product performance testing.
Cost saving: We provide long-life and high reliability air curtains with excellent quality and better performance, resulting in increased cost saving.
Feedback customers queries promptly: Customers are always given quick support.
