2025 Water Source Thermal Industrial Air Curtain For 0.9m , 1.2m , 1.5m Width Door
Water Source Industrial Door Thermal Air Curtains For 0.9m , 1.2m, 1.5m Width Door

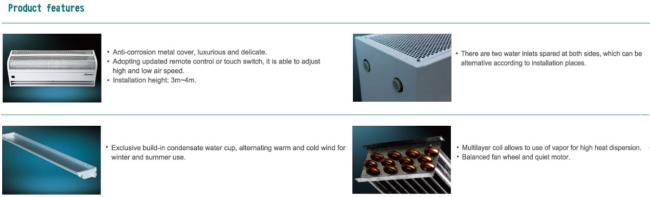

Metal casing
Full metal body, high anti-corrosion, elegant and luxurious body;
High Efficiency

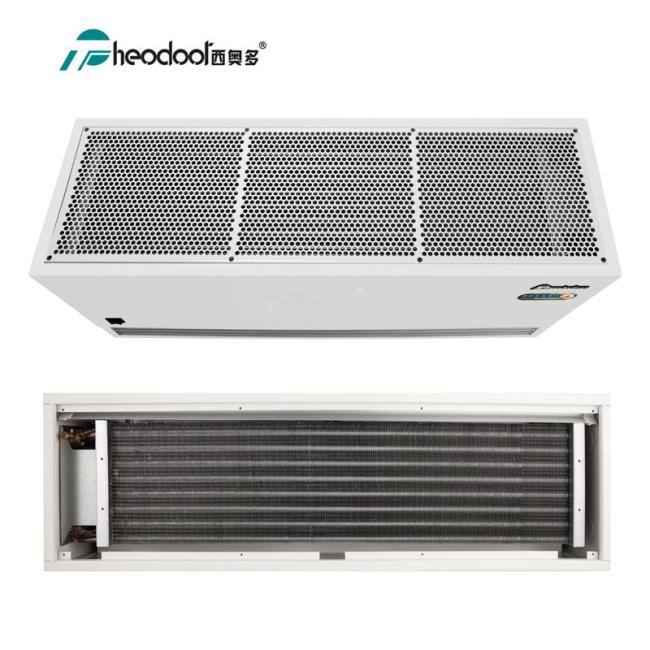

Multi-layer compound fan coil, suitable for hot or cold water with low consumption and high heat dissipation.
Optimized motor with safe and reliable performance; Running for 5000 hours continuously without failure.
Humanized Design
Preset left and right side 2 ways water inlets, thus, can meet different mounting occasion.
Exclusive stainless aluminum alloy condensate water collection plate much more suitable for commutative use in summer and winter.
Easy Control
Adopting button switch or remote control, with high & low air velocity.
Specifications:
Model |
RM-4009-S |
RM-4012-S | RM-4015-S | ||
| Power (V/Hz) | 220/50 | 220/50 | 220/50 | ||
| Input power (w) | 230 /180 | 350 /300 | 430 / 380 | ||
|
Air speed (m/s) |
Hi | 14 | 14 | 14 | |
| Lo | 11 | 11 | 11 | ||
| Air volume (m3/h) | Hi | 2800 | 3750 | 4700 | |
| Lo | 2150 | 2880 | 3620 | ||
| Noise level (dB) | <55 | <57 | <59 | ||
|
Temperature of water 100-65℃ |
Water flow speed (m/s) | 0.49 | 0.65 | 0.82 | |
| Water volume (kg/h) | 878 | 1170 | 1460 | ||
| Water resistance (Pa) | 2036 | 2715 | 3390 | ||
| Temperature of outlet air (℃) | 53 | 53 | 53 | ||
| Heat dispersing volume (KW) | 20 | 28 | 36 | ||
|
Temperature of water 90-60℃ |
Water flow speed (m/s) | 0.39 | 0.52 | 0.65 | |
| Water volume (kg/h) | 698 | 1170 | 1460 | ||
| Water resistance (Pa) | 1620 | 2160 | 2700 | ||
| Temperature of outlet air (℃) | 49 | 49 | 49 | ||
| Heat dispersing volume (KW) | 16 | 21 | 27 | ||
Applications:
Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air-conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.
National craftsman, Originality manufacturing
Theodoor industrial park covers the area of 30,000 square meters. We had applied the most advanced industrial equipments and detecting instruments. There are automatic operation assembly lines, CNC production and executedimplementationof ERP management, 6S management and strict quality system management.
Theodoor strives for design aesthetics, power performance, material testing, research and development, technology and performance. Select new security, environmental protection, wear-resistant materials, use advanced manufacturing technique to extend product lifetime, to ensure that products can be operated more secure, environmentally friendly (non-toxic, odorless, fire-resistant) in a variety of conditions.
From “MADE IN CHINA” to “CREATED IN CHINA”
Theodoor has acquired National Invention Patents, Utility Model Patents and Design Patents for more than 80 items, leading the quality and performance of product upgrading in the industry. The company and products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications. Over 16 year’s originality manufacturing, Theodoor has created worldwide quality products.
