UL-2000 Micro-VolumeUltromicro optical distance: 1mm / 0.2mm / 0.05mm ( available ) UV / VIS Spectrophotometers

Feature

* Microscale sample test, minium 0.5ul, ultromicro and cuvette are possible
* Wildly test area, 100 times of the traditional spectrophotometer
* No need to dilute for most samples
* Test directly, no need to warm-up, container test and daily consumtion test
* Whole wavelength 190-1100nm, accuracy 1nm, auto scannig wavelength 190-850nm
* Compact size and partable package fitable for on-site test
* More accurate and fexiable test is realized by PC contry

Specification

* Minium sample capacity: 0.5ul
* Ultromicro optical distance: 1mm/0.2mm/0.05mm (available)
* Cuvette optical distance: 10mm/5mm/2mm/1mm
* Wavelength band:190-850nm
* Wavelength accuracy:1nm
* Wavelength resolution: ≤0.3nm(FWHM at Hg 253.7nm)
* Aborbance accuracy: 2%(0.76 at 257nm)
* Aborbance resolution: 0.002Abs(1mm)
* Aborbance area: 0.005～80 (10mm)
* Test accuracy: 0.01～0.5 Abs.±0.01Abs 0.5～80 Abs. ±2%
* Detector: 3648 pixel linear CCD array
* Light source: mini HID
* Text time:8s
* Size: 200mm×130mm×136mm(L×W×H)
* Weight: ≤ 2.5kg
* Sample test platform material: 204 stainless steel and quartz
* Voltage : AC100～240V 50～60Hz
* Power: 24W

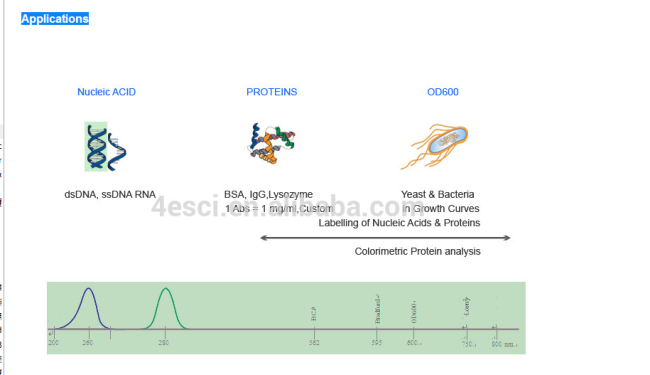

Application
