DC 24V 0.5Kw Mini Hydraulic Power Packs For Stacker Hand Trucks
Price:
Negotiation
MOQ:
20PCS
Delivery Time:
15 work days
Brand:
TianDi
Product Description

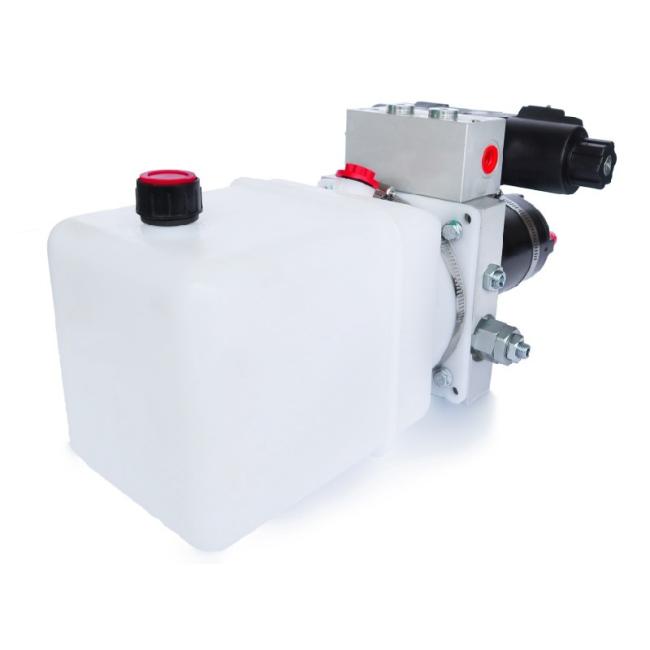

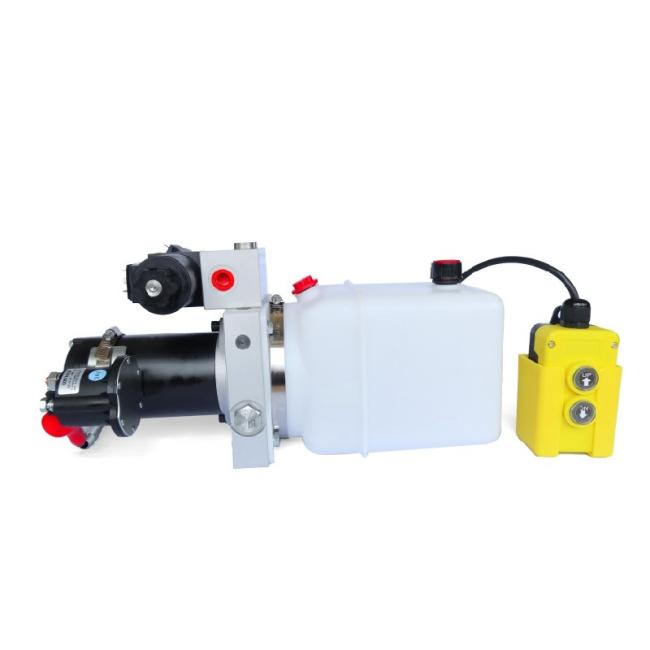

DC 24V 0.5Kw Mini Hydraulic Power Packs For Stacker Hand Trucks
DC Power Unit Code Rules
| TDDL | - | 00-00 | - | A00 | - | 00 | - | 00 L | ||
| Tiandi Code | Schematic Code | Motor Code | Gear Pump Code | Tank Litres | Remarks |
Remarks & Notes:
1.Solenoid Valve Voltage 2.Oil Port Size 3.Tank Shape & Material 4.Installation:Horizontal 5.Wire Switch 6.System Pressure
Example:TDDL-50-08-H02-B10-5L Dock Leveler Power Unit
1.Oil Port:G3/8 2.Tank:Iron Round 3.Installation:Horizontal 4.System Pressure:15MPa
Schematic Code
Gear Pump Code
|
Motor Code |
Displacement |
Motor Code |
Specification |
Motor Code |
Specification |
Specification
|
|
B01
|
0.26cc/r
|
B08
|
1.6cc/r
|
B15
|
4.2cc/r
|
000
|
|
B02
|
0.38cc/r
|
B09
|
1.8cc/r
|
B16
|
4.8cc/r
|
|
|
B03
|
0.45cc/r
|
B10
|
2.1cc/r
|
B17
|
5.8cc/r
|
|
|
B04
|
0.75cc/r
|
B11
|
2.6cc/r
|
B18
|
6.8cc/r
|
|
|
B05
|
1.0cc/r
|
B12
|
2.7cc/r
|
B19
|
7.8cc/r
|
|
|
B06
|
1.1cc/r
|
B13
|
3.2cc/r
|
|
|
|
|
B07
|
1.3cc/r
|
B14
|
3.7cc/r
|
|
|
Motor Code
|
DC 12V
|
DC 24V
|
Specification
|
||
|
Code
|
Specification
|
Code
|
Specification
|
000
|
|
A01
|
12V 0.5KW
|
B01
|
24V 0.5KW
|
|
|
A02
|
12V 0.8KW
|
B02
|
24V 0.8KW
|
|
|
A03
|
12V 1.6KW
|
B03
|
24V 1.6KW
|
|
|
A04
|
12V 2.0KW
|
B04
|
24V 2.0KW
|
|
|
A05
|
12V 2.2KW
|
B05
|
24V 2.2KW
|
|
|
A06
|
12V 2.5KW
|
B06
|
24V 2.5KW
|
|
|
A07
|
12V 3.0KW
|
B07
|
24V 3.0KW
|
|
