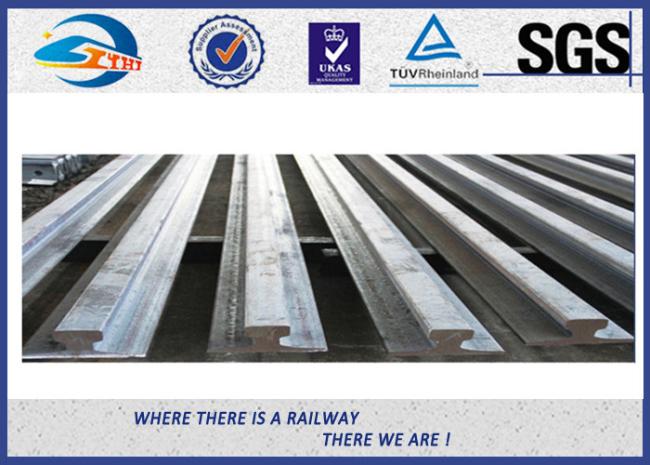

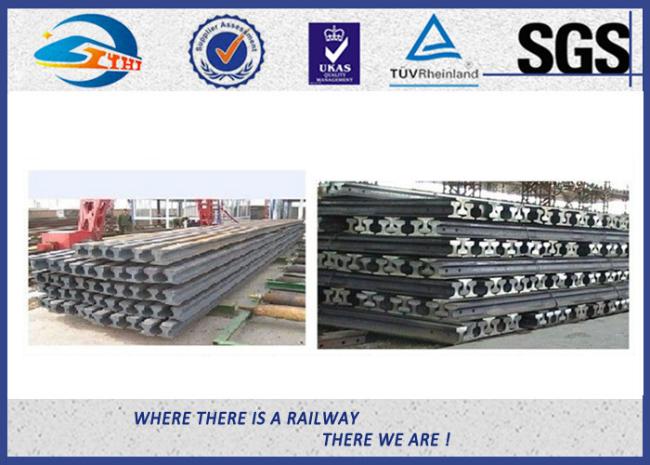

UIC50 UIC54 UIC60 Track Railway Heavy Steel Crane Rail 12 - 25m
Track Railway Heavy Steel Crane Rail Standard UIC60 12 - 25m
Commercial Name: Steel Rail
Brand: ZHONGYUE
HS CODE 73021 0000

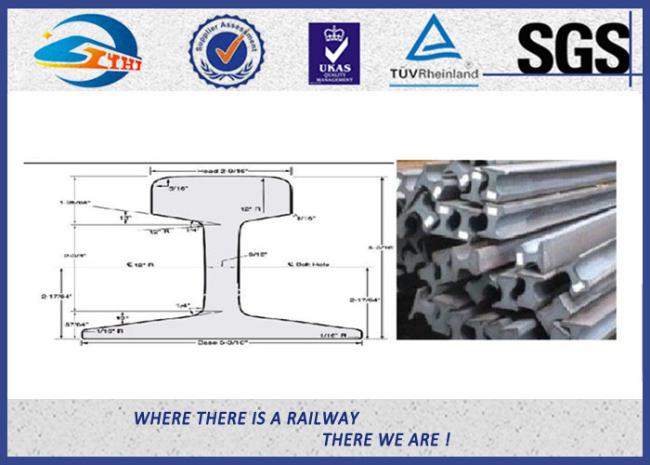

Technical Parameter Table of Rail
|
Standard: UIC860 |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
UIC50 |
70 |
152 |
125 |
15 |
50.46 |
900A/1100 |
12-25 |
|
UIC54 |
70 |
159 |
140 |
16 |
54.43 |
900A/1100 |
12-25 |
|
UIC60 |
74.3 |
172 |
150 |
16.5 |
60.21 |
900A/1100 |
12-25 |
Technical Parameter Table of Material
| Material | Chemical composition | Mechanical Properity | ||||||
| C | Si | Mn | P (max) | S (max) | Tensile strength | Elongation | Hardness | |
| % | % | % | % | % | Mpa | % | HB | |
| 900A | 0.6-0.8 | 0.1-0.5 | 0.8-1.3 | 0.04 | 0.04 | ≥880 | ≥10 | 240-270 |
| R260 | 0.6-0.82 | 0.13-0.6 | 0.65-1.25 | 0.025 | 0.025 | ≥880 | ≥10 | 260-300 |
The Process Flow Chart of Steel Rolling And Quality Control
- Raw material
- Heating
- High-pressure water dephosphorization
- Primary rolling
- High-pressure wind dephosphorization
- Precision rolling
- Saw cutting
- Pre-bending
- Air cooling —the test of chemical composition and mechanical properties
- Vertical straighting
- Ultrasonic detection
- Drilling and milling
- Heat treatment
- Inspection and analysis
- Labeling
- Packing
- Storage
Quality Testing Machine
- CS Analyzer
- Brienll hardenss tester
- Impact testing machine
- High magnification metallographic microscope
- Tensile testing machine
- Drop-testing machine
- Precise elemental analyser
- Digital ultrasonic flaw detector
Rail System
| Fastener system | Model | Quantity | Material |
| Clamp | SKL14 | 4pcs/set | 60Si2MnA |
| Screw spike | SS25 | 4pcs/set | 35# |
| Washer | ULS7 | 4pcs/set | Q235 |
| Insulator | / | 4pcs/set | PA66 |
| Tie plate | / | 2pcs/set | EVA |
| Sleeve | / | 4pcs/set | HDPE |
Package: steel belt;
Delivery time: 7-working days after getting payment.
Sale Range
- Rail fastening system
- Dog spike / Screw spike
- Bolt set
- Elastic clamp
- Rail anchor
- Rail shoulder
- Fish plate
- Tie plate
- Plastic / Rubber parts
- Brake shoe
- Steel rail
- New wood sleeper
Quotation necessity ( the more, the better )
- Standard
- Model
- Material
- Length ( m/pc)
- Order quantity ( m or MT)
If you have any other models of rail/ rail fastener, welcome to contact me.
