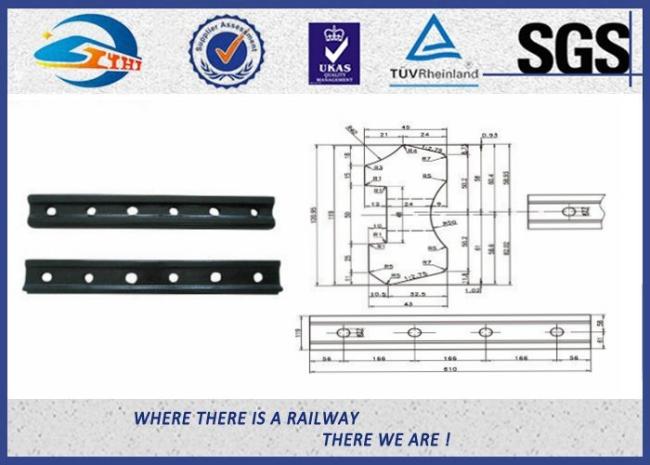

ASTM Steel Railway Fish Plate With Square Head Bolts And Nuts
BS80A ASTM Steel Railway Fish Plate With Square Head Bolts And Nuts
Set Of Fishplate:
- Fishplate BS80A
- Square Head Bolt
- Hex Nut
Types of Fish plates:
- 4-Hole
- 6-Hole
Rail Joint Bar:
1) Type: To 115RE; 132RE supporting the North America markets fish plates.
To UIC54; UIC60 supporting the Europe, Asia and Africa fish plates.
To TJ45; TJ57 supporting the South America markets fish plates.
To BS60; BS75 supporting the British Commonwealth fish plates.
Heterotypic fish plate: 43kg-50kg; 50kg-60kg; 60kg-75kg, 43kg-75kg common fish plate
P50, P60 bulge fish plate
2) Raw material: 45#, 50#, B7.45#
3) Surface: plain (oil)
Main Parameter
|
Name |
Specification Equal to rails |
Materials |
Standard of Products |
Theory Weight (kgs/set) |
Length of Dimension (mm) |
Packed In Bundle With Iron Wire (set) |
|
PlateFish |
4/9kgs/M |
Q235B or … |
GB11265-89 |
0.80 |
≈270-385 |
50 |
|
1.00 |
||||||
|
12kgs/M |
GB11265-89 |
1.10 |
≈409 |
50 |
||
|
1.30-1.50 |
||||||
|
15/18kgs/m |
GB11265-89 |
1.80-2.00 |
≈372-409 |
25 |
||
|
2.20-2.50 |
||||||
|
2.80-3.00 |
||||||
|
22/24kgs/M |
GB11265-89 |
3.30-3.50 |
≈426-510 |
20 |
||
|
3.80-4.00 |
||||||
|
4.20-4.50 |
||||||
|
30kgs/m |
GB11265-89 |
5.50-7.50 |
≈561 |
10 |
||
|
8.20-8.50 |
||||||
|
38/43/50kgs/m |
GB185-63 |
24-30 |
≈790 |
|||
