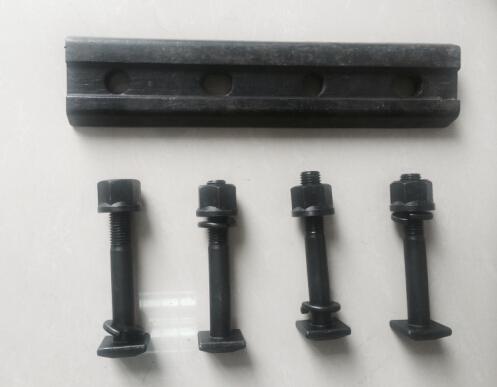

Product Name: Railway Fish Bolt Set
HS Code: 73181 59001
Brief introduction
Fish bolt are used for splice bar connections and ZHONGYUE can supply a range of fish bolts manufactured to international standards according to BS, ASTM and DIN, among others.
Listed below are examples of some of our fish bolt manufactured over the last several years as per BS 20M, 30M, 35M, 35R, 50 O, 60A, 75R, 80R, 80A, 95RBH, and 113A; DIN S10, S14, S18, S20, S24, S30, S49, UIC54, UIC60; and AREMA 40ASCE, 60ASCE, 75ASCE, 90ARA, 115RE.
Material
| Material | ||
| Grade | 8.8 | 10.9 |
| Material | 45# | 40Cr |
| Mechanical properties | Tensile strength:≥800Mpa | Tensile strength:≥1000Mpa |
| Yield strength:≥640Mpa | Yield strength:≥900Mpa | |
| Elongation:≥12% | Elongation:≥9% | |
| Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | |
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |
Classification
Button Head Oval Neck Track Bolt
|
Diameter |
Length |
Weight (Kg) |
|
1/2" |
1-3/4" |
0.097 |
|
1/2" |
2" |
0.10 |
|
1/2" |
2-1/4 |
0.112 |
|
5/8 |
2-1/2 |
0.183 |
|
3/4 |
3 |
0.328 |
|
3/4 |
3-1/2 |
0.339 |
|
3/4 |
4 |
0.356 |
|
7/8 |
4-1/2 |
0.559 |
|
7/8 |
5 |
0.593 |
|
1 |
5 |
0.8 |
|
1 |
5-1/2 |
0.839 |
|
1 |
6 |
0.879 |
|
1-1/16 |
6 |
0.995 |
|
1-1/8 |
6-1/2 |
1.186 |
Diamond Neck Track Bolts
|
Diameter |
Length |
Weight (Kg) |
|
7/8 |
4-1/2 |
0.563 |
|
7/8 |
5-1/2 |
0.651 |
|
1 |
5-1/4 |
0.889 |
|
1 |
5-3/4 |
0.895 |
|
Nominal Size |
Thread Length |
Bolt Length |
|
3/4 |
2 |
3-7/8 |
|
7/8 |
2-1/8 |
4-3/8 |
|
15/16 |
2-5/16 |
4-5/16 |
|
15/16 |
2-1/8 |
5 |
|
1 |
2-5/16 |
4-15/16 |
|
1 |
2-11/16 |
6-1/16 |

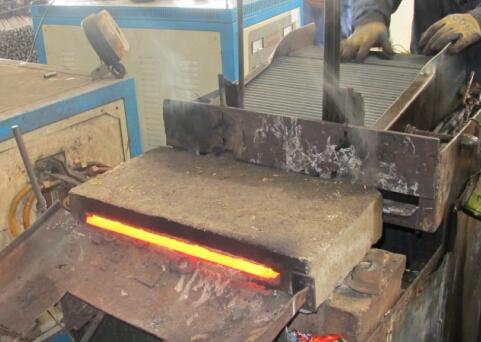

Process

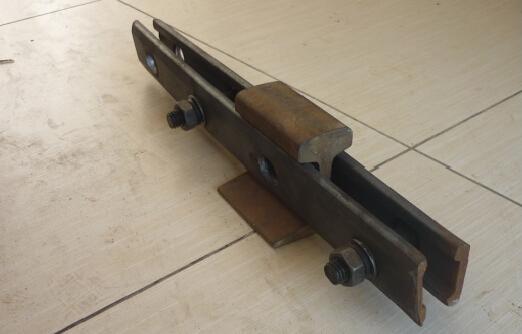

Application

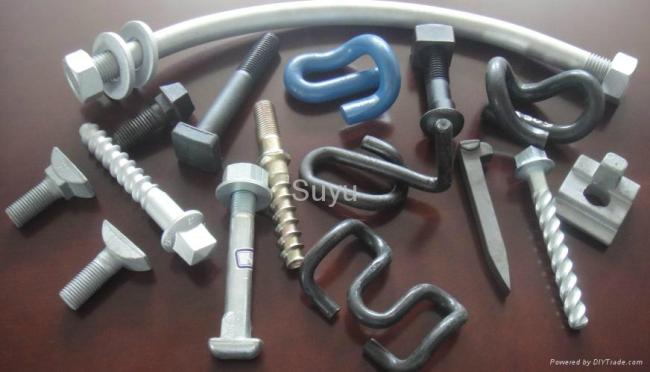

Similarity
| Type | 1. fish bolt | |||
| 2. T bolt | ||||
| 3. anchor bolt | ||||
| 4. tunnel bolt | ||||
| 5. arch bolt | ||||
| 6. knurling bolt | ||||
| 7. slipknot bolt | ||||
| 8. hex socket head bolt | ||||
| 9. hex head cao bolt | ||||
| 10 square bolt | ||||
| 11. stud bolt | ||||
| 12. special bolt | ||||
| 13. any other bolts | ||||
Quotation necessity ( the more, the better )
- Drawing with full size
- Material and Grade
- Surface Treatment
- Order quantity
Sale Range
- Rail fastening system
- Dog spike / Screw spike
- Bolt set
- Elastic clamp
- Rail anchor
- Rail shoulder
- Fish plate
- Tie plate
- Plastic / Rubber parts
- Brake shoe
- Steel rail
- New wood sleeper
