Steel 50# Rolled Railway Fish Plate Connecting Rails Cast Rail Joint Bar
Steel 50# Rolled Railway Fish Plate Connecting Rails Cast Rail Joint Bar
General Introduction
Hot rolled from high quality steel, accurately cut to lengths required and accurately punched to suit
proper bolt hole configurations. Stamped identifications to provide ease of installation, proper application
and quality identification for traceability.
Technical Specification
| Name | Railroad Joint Bar | ||||
| Standard | Type | Length /Diameter | Weight(Kg) | Material | |
| AREMA2007 | 115RE | 4 hole- 24″ | 17.04 |
45# Chemical Composion(%): C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 |
50# Chemical Composion(%): C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 |
| 115RE | 6 hole -36″ | 25.56 | |||
| 132-136RE | 4hole-24″ | 17.75 | |||
| 132-136RE | 6hole-36″ | 26.63 | |||

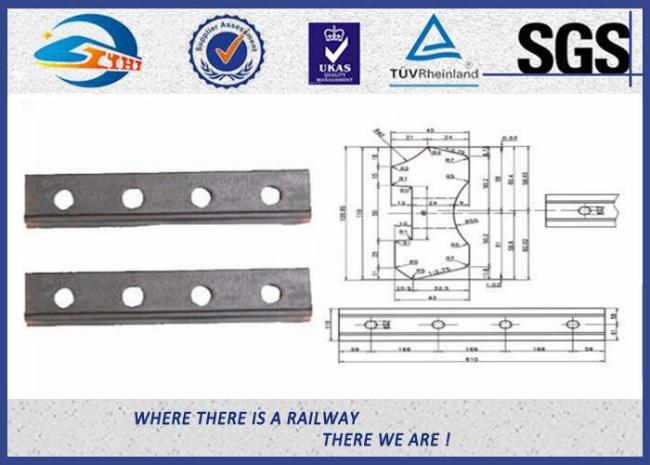

| UIC864 | UIC60 | 4 hole - 630/Φ26 | 18.07 | ||
| UIC60 | 4 hole-600/ Φ26 | 17.47 | |||
| UIC60 | 4 hole - 630/ Φ25 | 18.1 | |||
| UIC54 | 4hole | 14.34 | |||

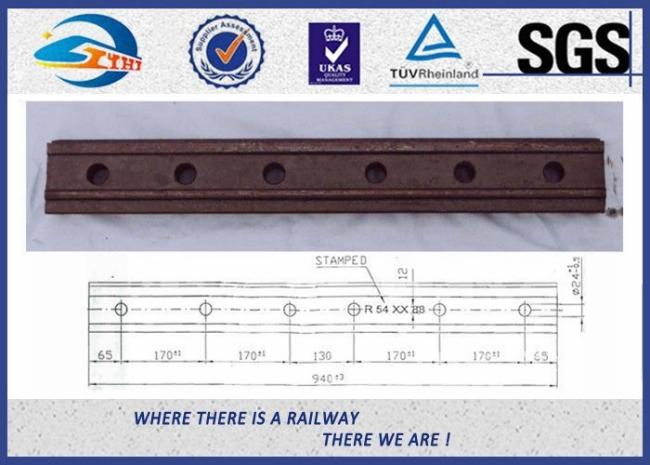

| UIC54 | 6hole- 800 | 19.94 | |||
| BS47-1 | BS80A | 4hole | 6.5 | ||
| BS90A | 685.8 / Φ26 | 13.23 | |||
| BS90A | 792.9/ Φ26.2 | 15.34 | |||
| 90/91LB | 4 hole | 18.08 | |||
| 90/91LB | 6hole | 19.9 | |||
| AS | 50Kg | 4hole | 14.3 | ||
| 50Kg | 6hole | 19.5 | |||
| BS47-1 | BS75R | 4hole | 6.56 | ||
| BS60A | 4hole | 5.61 | |||
| S49 | 4 hole | 9.71 | |||

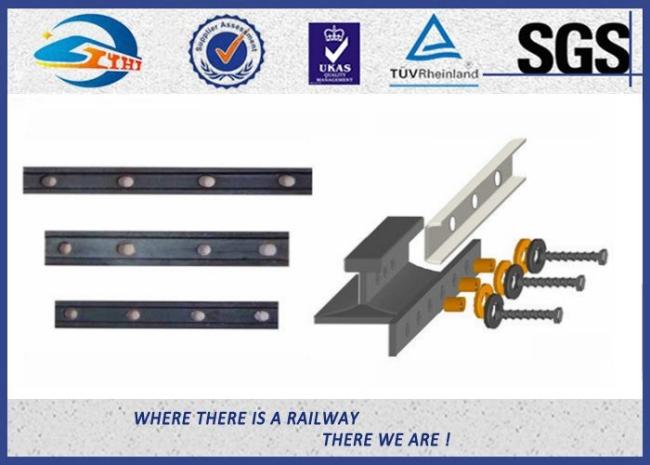

We deal in all types of Railroad Joint Bar, also known as fish plate, splice bar and angle bar. We have in-house rolling, forging, machining, and drilling and punching facilities to ensure accurate rail fish plate size. We have the capability to manufacture all types of rail fish plate to suit all types of rail sections, such as UIC 60, UIC 54, U33, BS 80A, BS 90A, IRS 52 KG, IRS 90 Lbs, 115 RE, 136 RE, TJ 45, TJ 37, RN 45, etc. Our fish plates are manufactured to international standards according to BS, ASTM and DIN, among others.
Normal Railroad Joint Bar
We offer 4 holed or 6 holed fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A, 80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.
Joggled Railroad Joint Bar
This product is a specially forged fish plate. It is suitable for the temporary repair of cracked welded rail joints with clamp assembly to suit various rail sections. Used as an emergency clamp, joggled fish plate enables quick and temporary repair, allowing continued movements through the section at a reduced line speed. They are readily available in a considerable quantity at all times.
