Weldable Base Railway Clips/Double Holes Rail Clips With Integral Rubber Block And Upper Clip In Railroad

Weldable Base Railway Clips Cap With Integral Rubber Block And Upper Clip In Railroad

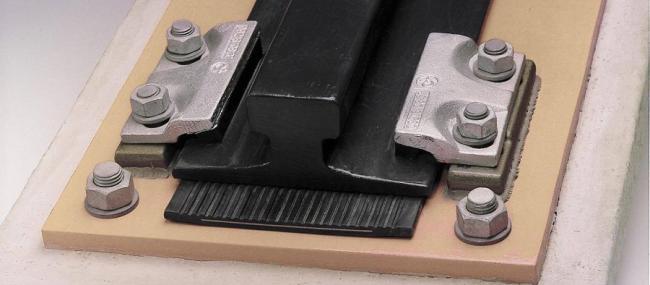

Adjustable rail clip is designed to fix heavy rails, on narrow supports, in the most arduous applications.
It can withstand a horizontal force from the rail of 120kN (12.2 tonnes ). Its low profile allows it to be used with cranes that are fitted with guide rollers.

Features:

• The proven design has been used successfully for many years throughout the world.
• The clip is welded to the rail support. No access is required from below.
• The two main parts are locked together on tightening the grade 8.8 bolt.
• The clip has a self-tightening mechanism.
• A special vulcanised rubber block applies a controlled force to the rail.

Components:

1. Flange Nut

2. Clip Cap With Integral Rubber Block

3. M20 Captive Bolt

4. Weldable Base Clip

Application:

Similarity:

Package:

1. 25 kg double-layer woven bag with free fumigation wooden pallent
2. 36bags/pallets
3. 20pallets/20ft
4. as client's requirement
