Quick Description

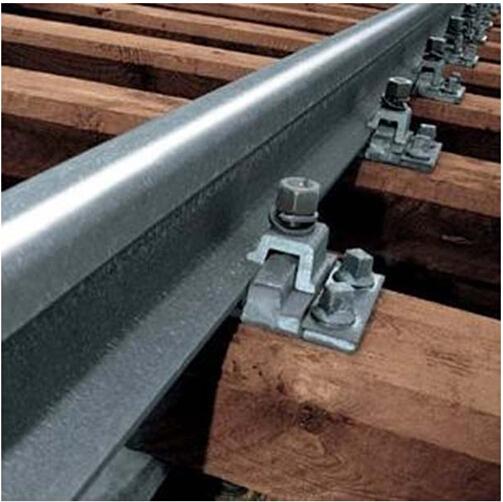

Adjustable rail clip is designed to fix heavy rails, on narrow supports, in the most arduous applications.
It can withstand a horizontal force from the rail of 120kN (12.2 tonnes ). Its low profile allows it to be used with cranes that are fitted with guide rollers.
Features
• The proven design has been used successfully for many years throughout the world.
• The clip is welded to the rail support. No access is required from below.
• The two main parts are locked together on tightening the grade 8.8 bolt.
• The clip has a self-tightening mechanism.
• A special vulcanised rubber block applies a controlled force to the rail.
Specification
|
Brand |
Zhongyue |
||
|
Name |

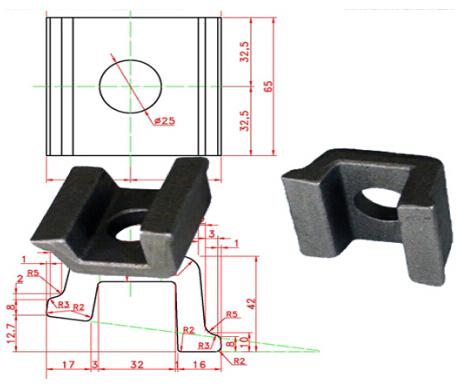

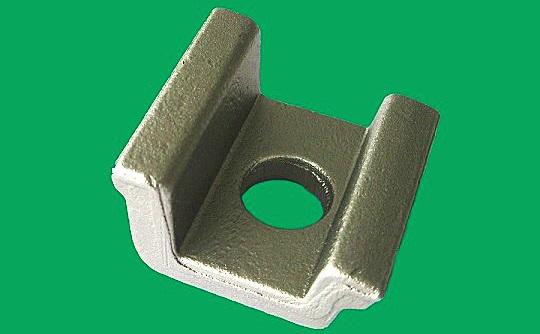

Railroad 22/130 AN/BN Clamping clip |
||
|
Type |
KPO3, KPO6, KPO9 |
||
|
Or the type by customers’ drawings |
|||
|
Material |
Q235-forging |
ZG35-cast steel |
QT500-7-cast iron |
|
Chemical composition(%) |
C:0.12-0.20, Mn:0.30-0.70, Si:≤0.3, P:≤0.045, S:≤0.045 |
C: ≤0.4, Mn:≤0.9, Si: ≤0.5, P:≤0.04, S:≤0.04 |
C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025 |
|
Surface |
plain (oiled) |
||
|
Standard refers |
DIN5906 |
||
