China Light Steel Crane Rail 6m To 12m Length / Steel Rail Track for sale

Light Steel Crane Rail 6m To 12m Length / Steel Rail Track

Price Negotiable

Price: Negociable

MOQ: 20 tons

Delivery Time: 7 to 20 days according to your order quantity

Brand: ZhongYue

Product Description

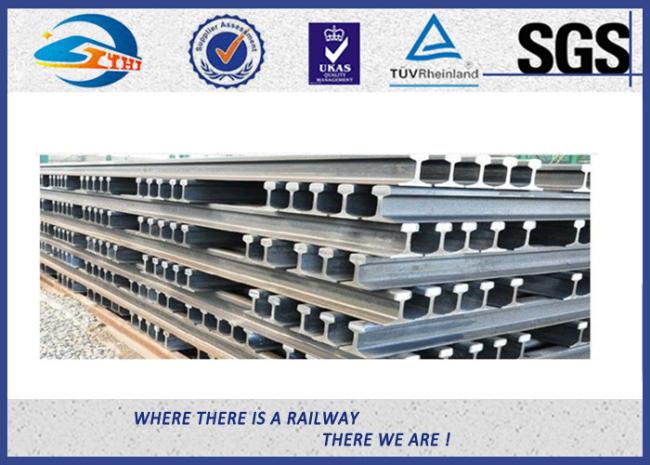

Light Steel Crane Rail 6m To 12m Length / Steel Rail Track

GB standard steel rail, GB6kg, GB9kg, GB12kg, GB15kg, GB22kg, GB30kg

Specifications

Standard: GB11264-89
Size	Dimension(mm)				Weight (kg/m)	Material	Length(m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	Weight (kg/m)	Material	Length(m)
GB6KG	25.4	50.8	50.8	4.76	5.98	Q235B	6-12
GB9KG	32.1	63.5	63.5	5.9	8.94	Q235B	6-12
GB12KG	38.1	69.85	69.85	7.54	12.2	Q235B/55Q	6-12
GB15KG	42.86	79.37	79.37	8.33	15.2	Q235B/55Q	6-12
GB22KG	50.3	93.66	93.66	10.72	23.3	Q235B/55Q	6-12
GB30KG	60.33	107.95	107.95	12.3	30.1	Q235B/55Q	6-12
Standard: YB222-63
8KG	25	65	54	7	8.42	Q235B	6-12
18KG	40	90	80	10	18.06	Q235B/55Q	6-12
24KG	51	107	92	10.9	24.46	Q235B/55Q	6-12

DIN Standard Steel Rail
Standard EN 13674-1-2003: A55, A65, A75, A100, A120

Specifications

Standard: DIN536
Size	Dimension(mm)				Weight (kg/m)	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	Weight (kg/m)	Material	Length (m)
A55	55	65	150	31	31.8	900A	10-12
A65	65	75	175	38	43.1	900A	10-12
A75	75	85	200	45	56.2	900A	10-12
A100	100	95	200	60	74.3	900A	10-12
A120	120	105	220	72	100	900A	10-12

UIC860 Standard Steel Rail
Standard UIC860: UIC50, UIC54, UIC60
Specifications

Standard: UIC860
Size	Dimension(mm)				Weight (kg/m)	Material	Length (m)
Size	Head(mm)	Height(mm)	Bottom(mm)	Web(mm)	Weight (kg/m)	Material	Length (m)
UIC50	70	152	125	15	50.46	900A/1100	12-25
UIC54	70	159	140	16	54.43	900A/1100	12-25
UIC60	74.3	172	150	16.5	60.21	900A/1100	12-25
