6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt
4 Holes And 6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail With Dimensions

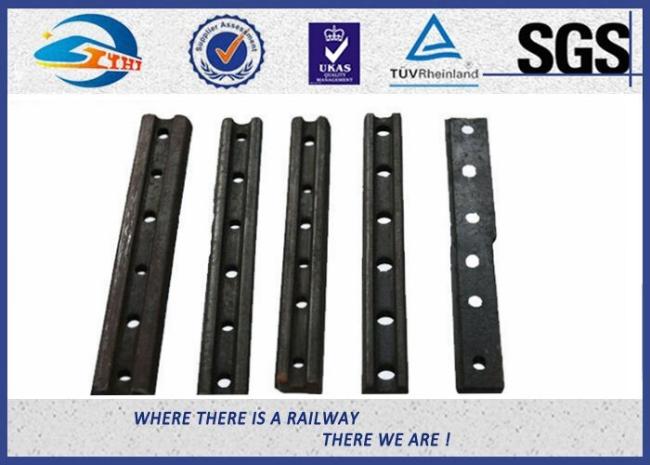

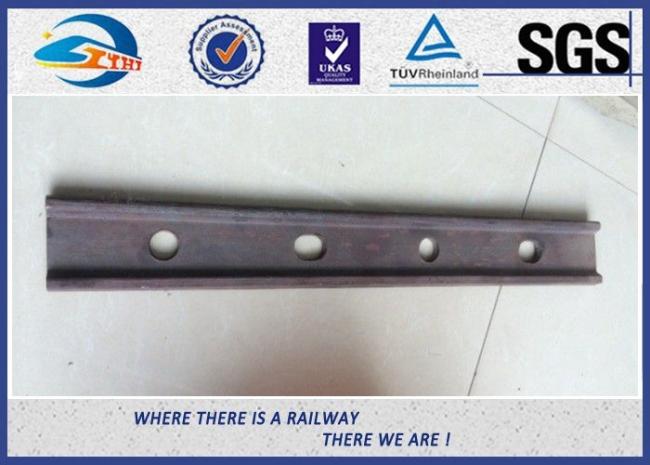

We offer 4 holed or 6 holed fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A, 80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.
In rail terminology, a fishplate, splice bar or joint bar is a metal bar that is bolted to the ends of two rails to join them together in a track. The name is derived from fish, a wooden bar with a curved profile used to strengthen a ship's mast.[1] The top and bottom edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place.[2] In rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.
Combination/Compromise Fish Plates
We produce specially designed fish plates to join two different rail sections of rail tracks for various customers when they require them.
| Tee Rail | A | B | C | D | E | Bar (")
Length |
Bar weight (PR) | Bar Punching | Common Type | |
| 4-Hole | 6-Hole | FxGxHxGxF | ||||||||
| 12 lb. ASCE | 2 | 4 | - | 5/8 | 57/64 | 16- 1/8 | 2.9 | - | 4 x 4 1/8 x 4 | Splice |
| 16 lb. ASCE | 2 | 4 | - | 5/8 | 1- 1/16 | 16- 1/8 | 3.6 | - | 4 x 4 1/8 x 4 | Splice |
| 20 lb. ASCE | 2 | 4 | - | 5/8 | 1- 11/64 | 16- 1/8 | 4.2 | - | 4 x 4 1/8 x 4 | Splice |
| 30 lb. ASCE | 2 | 4 | - | 3/4 | 1- 25/64 | 16- 1/8 | 7.0 | - | 4 x 4 1/8 x 4 | Splice |
| 40 lb. ASCE | 2- 1/2 | 5 | - | 7/8 | 1- 9/16 | 20 | 12.0 | - | 5 x 5 1/8 x 5 | Angle F. T. |
| 60 lb. ASCE | 2- 1/2 | 5 | - | 1 | 1-115/128 | 20 | 27.2 | - | 5 x 5 1/8 x 5 | Angle F. T. |
| 80 lb. ASCE | 2- 1/2 | 5 | - | 1- 1/16 | 2- 3/16 | 24 | 46.0 | - | 5 x 5 1/8 x 5 | Angle F. T. |
| 85 lb. ASCE | 2- 1/2 | 5 | - | 1- 1/16 | 2- 17/64 | 24 | 47.3 | - | 5 x 5 1/8 x 5 | Angle F. T. |
| 85 lb. CP | 2- 7/16 | 6- 1/2 | - | 1- 1/16 | 2- 11/32 | 22 | 43.6 | - | 6 1/2 x 5 x 6 1/2 | Angle F. T. |
| 100 lb. RE | 2- 11/16 | 5- 1/2 | - | 1- 3/16 | 2- 45/64 | 22 | 51.9 | - | 5 1/2 x 5 1/2 x 5 1/2 | Angle F. T. |
| 100 lb. ARAA | 2- 11/16 | 5- 1/2 | - | 1- 3/16 | 2- 3/4 | 22/33 | 53.5 | 80.3 | 5 1/2 x 5 1/2 x 5 1/2 | Angle F. T. |
| 100 lb. ASCE | 2- 15/16 | 6 | - | 1- 3/16 | 2-65/128 | 24 | 63.2 | - | 5 x 5 1/8 x 5 | Angle F. T. |
| 115 lb. RE | 3- 1/2 | 6 | 6 | 1- 3/16 | 2- 7/8 | 25/36 | 69.4 | 99.8 | 6 x 6x 7 1/8 x 6 x 6 | Angle F. T. |
| 132 lb. RE | 3- 1/2 | 6 | 6 | 1- 5/16 | 3- 3/32 | 24/36 | 71.0 | 106.5 | 6 x 6x 7 1/8 x 6 x 6 | Angle F. T. |
| 136 lb. RE | 3- 1/2 | 6 | 6 | 1- 5/16 | 3- 3/32 | 24/36 | 71.0 | 106.5 | 6 x 6x 7 1/8 x 6 x 6 | Angle F. T. |
| CRANE RAIL | ||||||||||
| 104 lb. CR | 4 | 5 | 6 | 1 - 1/16 | 2 - 7/16 | 34 | - | 60.2 | 6 x 5 x 7 - 15/16 x 5x 6 | Angle F. T |
| 105 lb. CR | 4 | 5 | 6 | 15/16 | 2 -13/64 | 34 | - | 51.6 | 6 x 5 x 7 - 15/16 x 5x 6 | Splice |
| 135 lb. CR | 4 | 5 | 6 | 1- 3/16 | 2- 15/32 | 34 | - | 57.8 | 6 x 5 x 7 - 15/16 x 5x 6 | Splice |
| 171 lb. CR | 4 | 5 | 6 | 1- 3/16 | 2- 5/8 | 34 | - | 72.1 | 6 x 5 x 7 - 15/16 x 5x 6 | Splice |
| 175 lb. CR | 4 | 5 | 6 | 1- 3/16 | 2-21/32 | 34 | - | 69.4 | 6 x 5 x 7 - 15/16 x 5x 6 | Splice |
|
Type |
Length /Diameter |
Weight(Kg) |
Material |
|
|
115RE |
4 hole- 24″ |
17.04 |
45#
Chemical 'composition(%): C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
|
50#
Chemical composition(%): C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 |
|
115RE |
6 hole -36″ |
25.56 |
||
|
132-136RE |
4hole-24″ |
17.75 |
||
|
132-136RE |
6hole-36″ |
26.63 |
||
|
UIC60 |
4 hole - 630/Ø26 |
18.07 |
||
|
UIC60 |
4 hole-600/ Ø 28 |
17.47 |
||
|
UIC60 |
4 hole - 630/ Ø 25 |
18.1 |
||
|
UIC54 |
4hole |
14.34 |
||
|
UIC54 |
6hole- 800 |
19.94 |
||
|
BS80A |
4hole |
6.5 |
||
|
BS90A |
685.8 / Ø 26 |
13.23 |
||
|
BS90A |
792.9/ Ø 26 .2 |
15.34 |
||
|
90/91LB |
4 hole |
18.08 |
||
|
90/91LB |
6hole |
19.9 |
||
|
50Kg |
4hole |
14.3 |
||
|
50Kg |
6hole |
19.5 |
||
|
BS75R |
4hole |
6.56 |
||
|
BS60A |
4hole |
5.61 |
||
|
S49 |
4 hole |
9.71 |
||
