Carbon Steel Q235 Railway Sleeper Screws , Railroad Screw 5.6 Grade
Carbon Steel Q235 Railway Sleeper Screws , Railroad Screw 5.6 Grade
Railroad screws provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes.
Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers.
Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and ZHONGYUE can help with product specification and selection
Dimension
Square Head Permagrip Timber Screw Spike 2 2/3 Pitch Quad Lead Thread
| Diameter | Length | Head Diameter | Head Height | Head Button Height | Head Washer Height | Head Overall Height | Head Width | Head Length | Thread Length Nominal |
|---|---|---|---|---|---|---|---|---|---|
| 11/16" | 6-3/4" | 2" | 23/32" | 1/8" | 1/4" | 31/32" | 7/8" | 7/8" | 4-5/8" |
Square Head w/ Bevel Permagrip Timber Spike 2 2/3 Pitch Quad Lead Thread
| Diameter | Length | Head Diameter | Head Height | Head Button Height | Head Washer Height | Head Overall Height | Head Width | Head Length | Thread Length Nominal |
|---|---|---|---|---|---|---|---|---|---|
| 11/16" | 6-3/4" | 2" | 1-1/8" | 1/8" | 13/32" | 1-1/8" | 7/8" | 7/8" | 5-3/8" |
Rectangle Head w/ Bevel Permagrip Timber Screw Spike 2 2/3 Pitch Quad Lead Thread
| Diameter | Length | Head Diameter | Head Height | Head Button Height | Head Washer Height | Head Overall Height | Head Width | Head Length | Thread Length Nominal |
|---|---|---|---|---|---|---|---|---|---|
| 11/16" | 6-3/4" | 2" | 23/32" | 1/8" | 13/32" | 1-1/4" | 27/32" | 1-1/8" | 4-5/8" |
Technical Details
| Brand | ZHONGYUE | |||
| Type | Ss5.-150 | V20-135 | ||
| Ss8-140 | V23-115 | |||
| Ss8-150 | V23-135 | |||
| Ss8-160 | V23-155 | |||
| Ss23-160 | V23-215 | |||
| Ss25.-165 | V26-115 | |||
| Ss35.-161 | ||||
| Or the type by customers’ drawings | ||||
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
|
Mechanical |
Tensile strength: |
Tensile strength: |
Tensile strength: |
Tensile strength: |
|
Yield strength: |
Yield strength: |
Yield strength: |
Yield strength: |
|
| Elongation:≥22% | Elongation:≥20% | Elongation:≥12% | Elongation:≥9% | |
|
Cold bending: |
Cold bending: |
Cold bending: |
Cold bending: |
|
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
|
Standard |
ISO898-1, UIC864-1, and NF F500-50 | |||

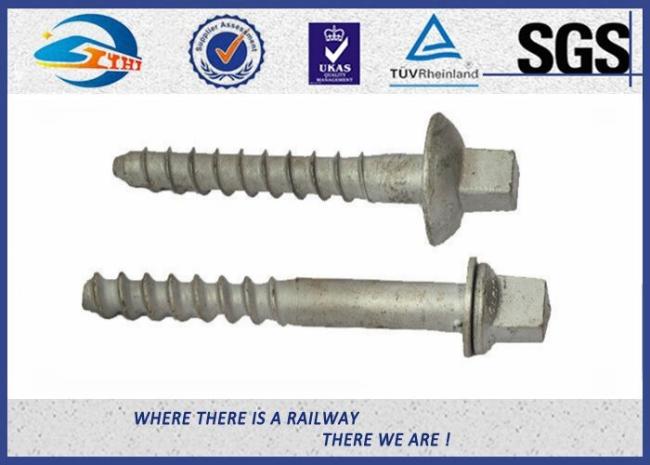

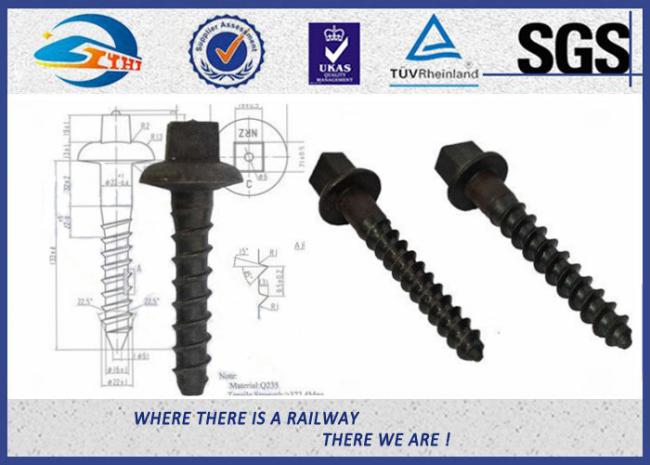

Photos for Reference
