Sole Steel Plate Weldable Upper Clip With Rubber Nose , Plain Q235 Carbon Steel
Sole Steel Plate Weldable Upper Clip With Rubber Nose , Plain Q235 Carbon Steel
SUYU can supply a range of TRACK CLAMP SYSTEM manufactured to international standards according to BS, ASTM and DIN, among others.
SUYU has extensive experience in the rail industry and a high level of expertise in this specialized field. SUYU can manufacture any quantity, big or small, and offers a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.
Specification:
| Item Name | Two Hole Clamp |
| Usage | Rail Fastening |
| Material | Iron Steel |
| Surface Treatment | Bluing, Plain Oiling, Color Painting, etc |
| Documents with Delivery | Mechanical Properties, Chemical Composition, All Sizes Reports |
| Standard | ISO, SGS, TUV |
| Item | Part | Quantity | Size |
|---|---|---|---|
| 1 | Upper clip | 1 | 150*92mm |
| 2 | Weldable clip | 1 | 160*60mm |
| 3 | Rubber rod | 1 | 140*13mm |
| 4 | Bolt | 2 | M20*55 |
| 5 | Hex nut | 2 | M20 |
| 6 | Washer | 2 | M21 |

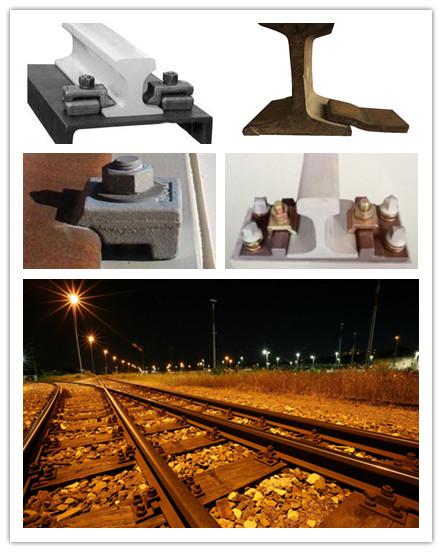

Product Show
Material
Forging: Q235;
| Grade | 4.6 |
| Material | Q235 |
| Mechanical | Tensile strength: ≥ 400Mpa |
| Yield strength: ≥ 240Mpa | |
| Elongation: ≥ 22% | |
| Cold bending: 90 degree | |
| without crack |
Note
the first 4: tensile strength of material Q235 is 400MPa;
the second 0.6: the yield ratio is 0.6;
the yield strength of material Q235 is 400MPa x 0.6 =240 MPa.
MOQ: 3.0 MT/ORDER
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement
Surface Treatment
- plain (oiled)
- oxide Black
- galavazing
- DHG
Inspection machine
- Brinell Hardness Tester
- Carbon and Sulfur Analyzer
- Rockwell Hardness Machine
- Automatic Impact Testing Machine
- Metallographic Microscope
- Automatic High-speed Analyzer
- Fatigue Testing Machine
- Metallographic Specimen Polishing Machine
- Metallographic Specimen Pointing Machine
Application
Similarity:
- one hole clip system
- E clip system
- SKL clip system
- Nabla clip system
- dog spike system
Package
- 25 kg double-layer woven bag with free fumigation wooden pallent
- 36bags/pallets
- 20pallets/20ft
- as client's requirement
Quotation necessity ( the more information, the better )
- Drawing with full size
- Order quantity
- Surface Treatment
- Material
Sale Rang
- Rail fastening system
- Dog spike
- Screw spike
- Bolt set
- Elastic clamp
- Rail anchor
- Rail shoulder
- Fish plate
- Tie plate
- Plastic
- Rubber parts
- Brake shoe
- Steel rail
- New wood sleeper
