Railroad Elastic Clip
As a professional manufacturer and supplier of railroad fasteners, with railroad elastic clip as our most popular products, we also offer elastic clips that are exclusively used in railways. Fabricated with optimum quality raw materials, these elastic rail clips are designed with high precision which impart high tensile strength and corrosion resistance. Our products can also be customized according to clients' requirements. We produce 1,500-2,000 tons of clips per month for clients both at home and abroad.
Product Features
1. Few, simple components
2. Well Proven globally
3. System can be mechanised
4. Very long life
5. High safety level and security
6. Proven on all types of ballasted track
7. Used in turnouts and crossings
8. Can be supplied in anti-vandal form
9. Virtually maintenance free
10. No threads to strip or corrode
Technical Specification
| Brand | SUYU | |||
| Name | Deenik Clip / Railway Clip/ Rail clip / Elastic Rail clip / Tension clamp / Rail clamp | |||
| Material | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
|
Chemical composition(%) |
C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 |
C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80, Cr:0.70-1.00 P:≤0.03, S:≤0.03 |
C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00, Cr:≤0.35 P:≤0.03, S:≤0.03 |
C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
| Hardness | For e clip: 44-48HRC | |||
| For skl clip: 42-47HRC | ||||
| Fatigue life | for Dia.18 is 3 millions cycles without breaking | |||
| for Dia.20 is 5 millions cycles without breaking | ||||
| Surface | plain (oiled), Oxide black, color painting | |||
| Standard refers | DIN17221, BS970, GB/T1222 | |||
Surface Treatment plain (oiled)
- color paint
- oxide Black (most choice)
- galavazing
- DHG
Inspection Machine
- Brinell Hardness Tester
- Carbon and Sulfur Analyzer
- Rockwell Hardness Machine
- Automatic Impact Testing Machine
- Metallographic Microscope
- Automatic High-speed Analyzer
- Fatigue Testing Machine
- Metallographic Specimen Polishing Machine
- Metallographic Specimen Pointing Machine

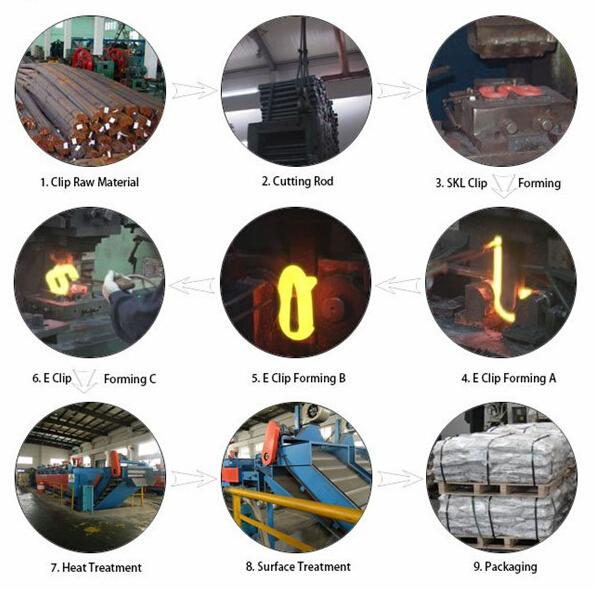

Production Process
Package

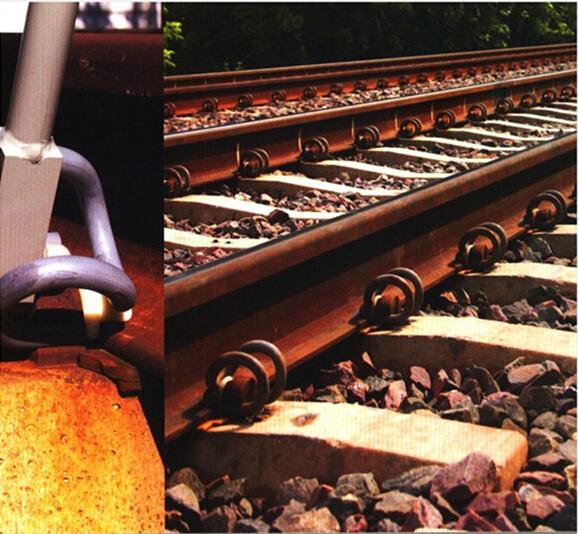

Application
