UIC DIN Standard Steel Rail Cast Iron 8.8 Grade Railway Shoulder Oxide Black

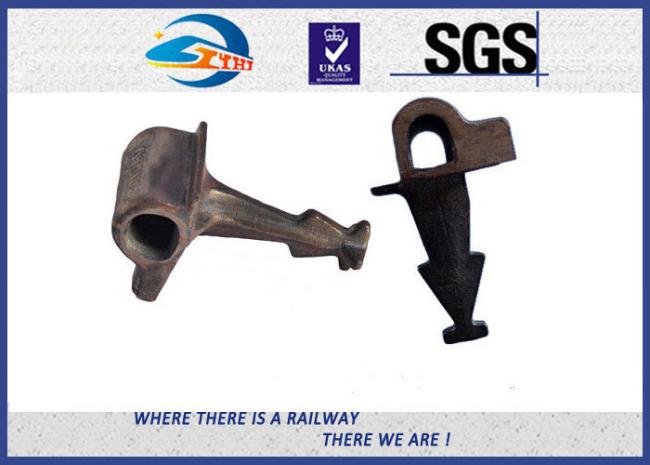

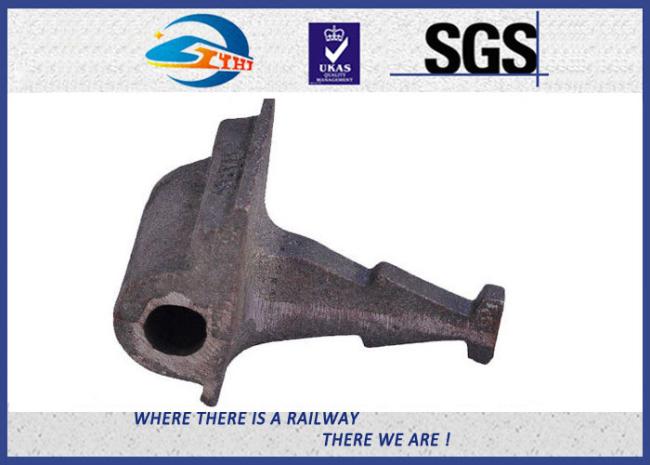

Inserts/Iron Shoulders are cast in the concrete ties for fixation of Elastic Rail Clips. Our Iron Shoulders are manufactured from pearlitic malleable iron (M. C. I. Inserts) and spheroid graphite iron (S. G. C. I. Inserts). We offer two types of Iron Shoulders: Single Stem Iron Shoulders mostly used in pre-stressed concrete ties, and Twin Stem Iron Shoulders commonly used in Bi-Block or Twin Block concrete ties.
The shoulder accessories are supplied for specific rail sections with design criteria which ensure that the correct elastic clip toe loading is achieved. Certain shoulders are supplied with milled weld area faces to assist in achieving the necessary weld integrity.
|
Brand |
ZHONGYUE |
||
|
Name |
Oxide Black Cast Iron 8.8 Grade Rail Shoulder For Railway UIC DIN Standard Steel Rail |
||
|
Type |
For A45, A55, A65, A100, Qu100 and QU120 steel rail |
||
|
Or the type by customers’ drawings |
|||
|
Material |
QT500-7 (GGG50) |
QT450-10(GGG45) |
QT400-15(GGG40) |
|
Chemical composition(%) |
C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025 |
C:3.40-3.90, Mn:0.2-0.5, Si:2.70-3.00, ,P:≤0.07, S:≤0.03 |
C:3.5-3.60, Mn: ≤0.5, Si:3.00-3.20 ,P:≤0.07, S:≤0.02 |
|
Surface |
plain (oiled) |
||
| Material | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) |
| QT400-15(GGG40) | 400 | 250 | 15 |
| QT450-10(GGG45) | 450 | 310 | 10 |
| QT500-7 (GGG50) | 500 | 320 | 7 |
| C | Si | Mn | P | S | |
| QT400-15 | 3.6-.36 | 3.0-3.2 | 0.5 | 0.07 | 0.02 |
| Qt450-10 | 3.4-3.9 | 3.7-3.0 | 0.5 | 0.07 | 0.03 |
| QT500-7 | 3.4-3.8 | 2.5-2.9 | 0.6 | 0.08 | 0.025 |
Advantage:
We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.
Order Hints:
MOQ: based on your product
Delivery time:Within 30days after order confirmed
Shipment: sea freight
Payment term: T/T 30% deposit, balance before shipment; LC
