Railway Fastener Rail Anchor 60Si2Mn 60Si2CrA

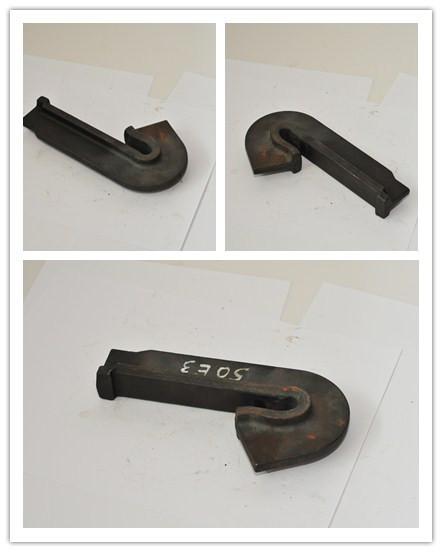

Black 60Si2Mn Steel Rail Anchors / Section Bar heat - treated For Railroad
Specifications:
Zhongyue specializes in producing rail fastening , rail anchors are our main products ,
Rail anchor are manufactured in one-piece construction for spring steel or equal , heat-treated and designed to eliminate creepage of track ,they provide a large bearing surface against both rail base and tie , avoiding undo cutting and wear , thus prolonging the life of wooden ties. The rail anchors are used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail and so on. .
| Type | Material | Weight(g/pc) |
| 50Kg | 60Si2MnA | 800 |
| 70LB | 60Si2MnA | 800 |
| 85LB | 60Si2MnA | 800 |
| 90/91LB | 60Si2MnA | 800 |
As a leading manufacturer of rail fastening in China , Zhongyue also can produce many other railway fasteners , such as track bolt . Sleeper screw .rail joint bar . tie plate .rail clips ,elastic rail clip .SKL tension clamp .rail shoulder and so on .
Sticking to the “quality first” policy, Zhongyue pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products. We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.
Material
| Brand | Zhongyue | ||
| Name | rail anchor | ||
| Type | used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail | ||
| Or the type by customers’ drawings | |||
| Material | 60Si2MnA | 45# | QT500-7 |
| Chemical composition(%) | C:0.56-0.64, | C:0.42-0.50, | C:3.60-3.80, |
| Mn:0.60-0.90, | Mn:0.50-0.80, | Mn:≤0.6, | |
| Si:1.60-2.00, | Si:0.17-0.37, | Si:2.50-2.90, | |
| Cr:≤0.35, | Cr:≤0.25, | ||
| P:≤0.03, | P:≤0.035, | P:≤0.08, | |
| S:≤0.03 | S:≤0.035 | S:≤0.025 | |
| Surface | plain (oiled),color painting | ||
| Standard refers | / | ||
Application
Similarity
Packing
- 25Kg Cartons or woven bags in wooden pallet,
- 36bags/pallets,
- 24pallets/container ,
- or according to customers' requirement
Sale Rang
- Rail fastening system
- Dog spike / Screw spike
- Bolt set
- Elastic clamp
- Rail anchor
- Rail shoulder
- Fish plate
- Tie plate
- Plastic / Rubber parts
- Brake shoe
- Steel rail
- New wood sleeper
Quotation necessity ( the more, the better )
- Drawing with full size ( front / side section / hole )
- Material
- Surface Treatment
- Order quantity
