Oxide Black Rail Fastening System For Railroad 44 - 48HRC Hardness
Oxide Black Rail Fastening System For Railroad 44 - 48HRC Hardness

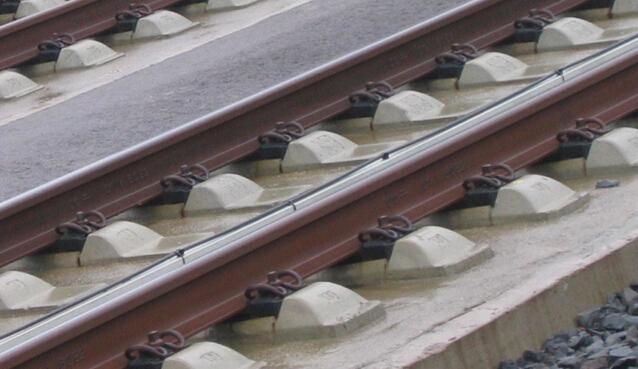

One set of SKL-14 fastening system includes:
A) Tension clamp Skl14 -4 units;
B) Screw spike Ss 25/Uls 7 -4 units;
C) Angled Guide Plate Wfp-14K12 -4 units;
D) Plastic dowel -4 units;
E) Rail Pad 148/185/6- 2 units;
Technical Parameters
| Part name | Type | Material | Finish | Remark |
| SKL14 tension clip | Dia. 13mm | 60Si2CrA, 38Si7 |
Plain oiled, color painting, or the other required ones. |
Hardness: 42-47HRC Fatigue test: When the clip spring deflection reaches 9.1mm and the swing deflection is 1.42mm, the fatigue life will be 5 millions cycles without breaking. Standard: DIN17221, GB/T1222 |
| Ss35 screw spike | M24×150mm M24 ×160mm M24×180mm |
Grade 4.6: Q235 Grade 5.6: 35# Grade 8.8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized |
Standard: ISO898-1, UIC864-1 and NF F500-50 |
| Plain washer | Uls7 | Q235 |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized |
Standard: EN10025, EN10139 |
| Plastic dowel | For different sizes of screw spike | HDPE, Reinforced Nylon 66 (PA66) | Black, blue, yellow, green or other color | For insert into concrete sleeper |
| Guide plate | UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered | Reinforced Nylon 66 (PA66) | Black, blue, yellow, green or other color | Different designs are available. |
| Rail pad | UIC54,UIC60, and size as ordered | EVA, or rubber | Black, blue, yellow, green or other color | Different designs are available. |
Features:
- Skl 14 R tension clamp with 1.8 mm fatigue strength
- Rail tilting protection by middle bend of the tension clamp and special design of the angled guide plate
- Pre-assembly of all components in the sleeper factory possible
- Reduction of maintenance costs by permanent elastic tensioning of the rail with tension clamps (2 x 12 kN toe load)
- Gauge adjustment ±10 mm in 2.5 mm steps

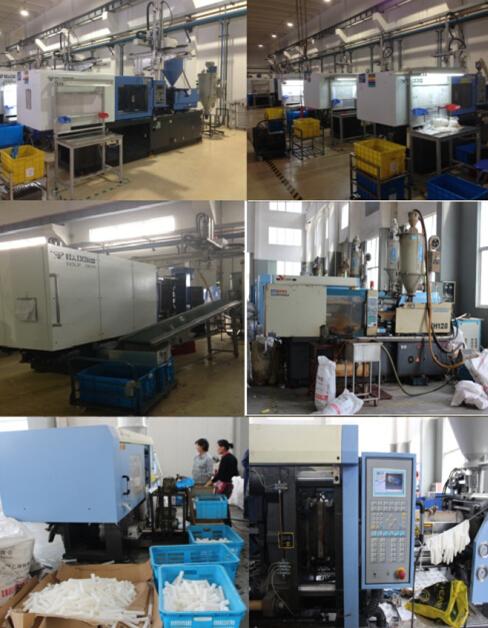

Produce Process
| Clip Production Process | |
| 1 | raw material |
| 2 | shearing |
| 3 | heating to forging temperature (950-1000 degrees celsius) |
| 4 | forming |
| 5 | hardening |
| 6 | tempering below 350 degrees celsius |
| 7 | inspection |
| 8 | packing |
Surface Treatment
- plain (oiled)
- color paint
- oxide Black (most choice)
- galavazing
- DHG

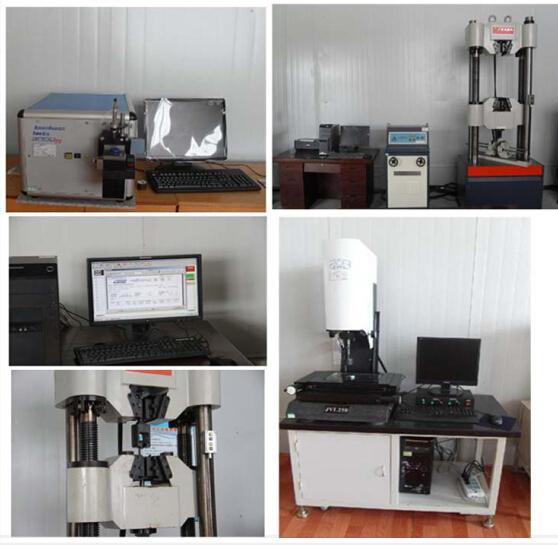

Inspection machine
- Brinell Hardness Tester
- Carbon and Sulfur Analyzer
- Rockwell Hardness Machine
- Automatic Impact Testing Machine
- Metallographic Microscope
- Automatic High-speed Analyzer
- Fatigue Testing Machine
- Metallographic Specimen Polishing Machine
- Metallographic Specimen Pointing Machine

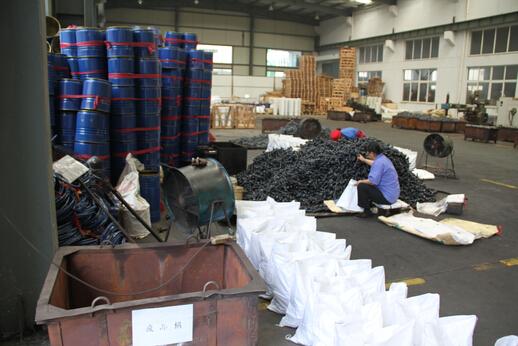

Package
- 25 kg double-layer woven bag with free fumigation wooden pallent
- 36bags/pallets
- 20pallets/20ft
Application
- Speed <120km/h
- High-way speed >120km/h
Quotation necessity ( the more, the better )
- Drawing with full size
- Material and grade
- Surface Treatment
- Order quantity

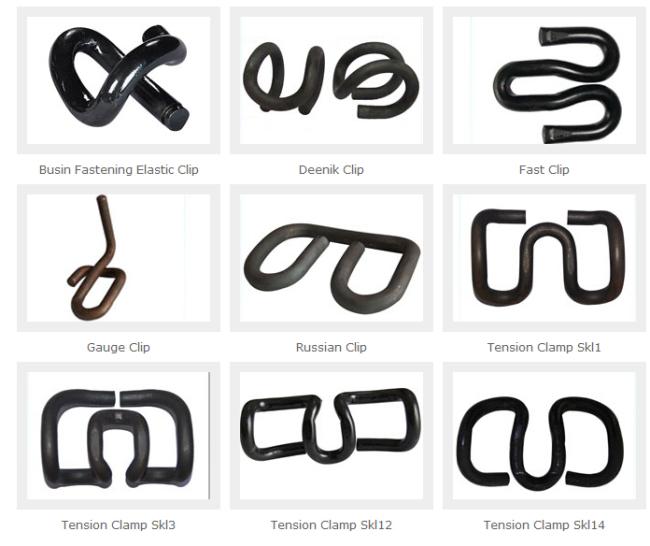

If you have any other models of rail/ rail fastener, welcome to contact me.
