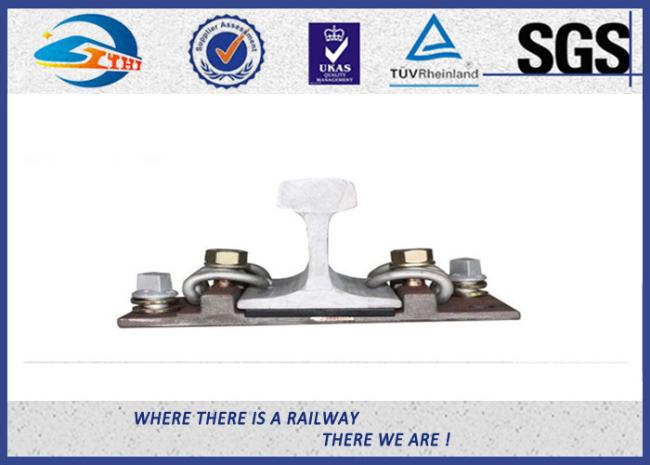

Bitumen / Dacromet SKL13 Railroad Fastening System ZhongYue ISO9001 2008
ZhongYue railway supplies railway fastening system SKL13 railroad
Meet all the requirements of Tram line. Top-down construction method is available, so sleepers are no needed. It can be used in general line, also in turnout area. It is feasible in open track, also in embedded track. Easy installation, Gauge adjustment +/-10mm, height regulation +20mm. The static stiffness is no less than 30KN/mm, different stiffness of rail pad can be provided according the requirements of customers.
The demand for fast clip rail fastening system is growing faster than other railroad fastener in the industry.
It is generally pre-assembled in the factory of sleeper manufacturer. The high-safety rail fastener is a
switch on-switch off system developed to meet the growing demand on fast clip rail fastening system.
Our fast clip rail fastener is capable of satisfying user requirement on rapid installation, low installation
cost, and low maintenance cost.
Both the clips and the toe insulators are installed at the parked position, where the side post insulators
and pads are mechanically held in place. All the components are transported to the site. The installation
of the fast clip rail fastening system is quite easy and can be conducted in different ways. The wide
applications make this product quite popular.
The fist rail fastening system is firstly developed in Sweden. This rail fastening system is widely used in
the railroad in South Africa, Zimbabwe, Botswana, Swaziland and Namibia. In addition, the railroad
fastener is extensively employed in South America and Australia.
The fist rail fastening system comprises of spring steel clip, rail pad, and insulated retaining pin. The
components for the rail fastening device are manufactured according to ISO 9001-2008 standard.
Order Hints:
MOQ: based on your product
Delivery time:Within 30days after order confirmed
Shipment: sea freight
Payment term: T/T 30% deposit, balance before shipment; LC
