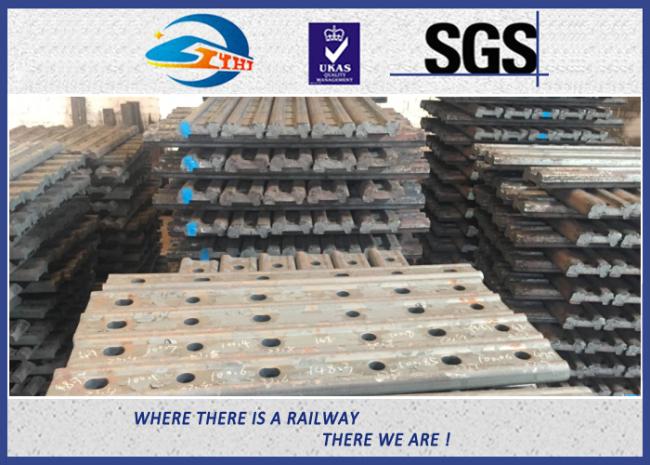

TUV Oxide Black Forging 4 Holes 50# Joint Bar Fishplates In Railway Tracks
4 Holes 50# Railway Railway track fish plate / joint bar, fishplate
Our domain expertise has enabled us to offer an excellent collection of Fish Plate Rail. This product is manufactured using premium quality raw material and advanced technology. Further, our quality controllers check this product on stringent parameters for ensuring its compliance with the defined industry norms. In addition to this, our esteemed clients can avail these products from us in various customized options. Moreover, clients can get these products from us pocket-friendly prices.
Features:
- High strength
- Performance-oriented design
- Anti-corrosive
Specifications:
- Fish Plate/ Joint Bar in Size: 52kg, 60kg, 90R
- Standard: UIC-54, UIC-60, S-49, S-33
|
Type |
Length /Diameter |
Weight(Kg) |
Material |
|
|
115RE |
4 hole- 24″ |
17.04 |
45#
Chemical 'composition(%): C:0.42-0.50, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035
|
50#
Chemical composition(%): C:0.62-0.70, Mn:0.50-0.80, Si:0.17-0.37, Cr:≤0.25, P:≤0.035, S:≤0.035 |
|
115RE |
6 hole -36″ |
25.56 |
||
|
132-136RE |
4hole-24″ |
17.75 |
||
|
132-136RE |
6hole-36″ |
26.63 |
||
|
UIC60 |
4 hole - 630/Ø26 |
18.07 |
||
|
UIC60 |
4 hole-600/ Ø 28 |
17.47 |
||
|
UIC60 |
4 hole - 630/ Ø 25 |
18.1 |
||
|
UIC54 |
4hole |
14.34 |
||
|
UIC54 |
6hole- 800 |
19.94 |
||
|
BS80A |
4hole |
6.5 |
||
|
BS90A |
685.8 / Ø 26 |
13.23 |
||
|
BS90A |
792.9/ Ø 26 .2 |
15.34 |
||
|
90/91LB |
4 hole |
18.08 |
||
|
90/91LB |
6hole |
19.9 |
||
|
50Kg |
4hole |
14.3 |
||
|
50Kg |
6hole |
19.5 |
||
|
BS75R |
4hole |
6.56 |
||
|
BS60A |
4hole |
5.61 |
||
|
S49 |
4 hole |
9.71 |
||
Our main products:
Plastic and rubber pads, EVA pad, HDPE pad, dog spike, screw spike, railway bolt and nut, washer, rail clip, rail shoulder, crane rail, fish plate, base plate, crane rails and so on.
