w/Nut & Washer 90 Degree Bend L Anchor Bolts / galvanized anchor bolts
Bent Anchor Bolts
Galvanized L-shape Anchor Bolt w/Nut & Washer 90 Degree Bend Anchor Bolts
Anchor Bolts
Bent anchor bolts (or 90 degree anchor bolts) are commonly used in the construction and engineering industries to attach objects or structures to concrete. Common applications include anchoring structural columns, light poles, bridge rails, and signage. Bent, or L-Shaped, Anchor Bolts (masonry anchors) vary in shape, size and material, depending on the specific application, however they all consist of a threaded end where a nut and washer can be attached for the external load. The bent portion of the bolt provides resistance so that the bolt is not pulled from the concrete when force is applied.
90 Degree Anchor Bolt Selection
ZHONGYUE carries a varied selection of standard 90 degree anchor bolt sizes, from 3/8” diameter to 5/8”, and lengths from 6” to 18”, however we specialize in providing our customer with bent anchor bolts manufactured to your specs. For custom anchor bolts, we’re able to offer diameters ranging from 3/8” to 4” in grades 36, 50, 55 & 105. Whether you need plain, zinc, hot dipped galvanized, 303 or 316 stainless steel, ZHONGYUE is able to meet your specific requirements.
Application:
Railway, Mining, Bridge, Boat, Construction etc.
Specifications:
Grade:4.6/4.8/5.6/5.8/8.8/10.9/12.9
Dimensions: 5/8" ,3/4" ,7/8", 1", 1 1/8",1 1/4",1 3/8",1 1/2", 1 5/8", 1 3/4", 1 7/8", 2"
Custom bent bolts are typically dimensioned as follows:
Diameter (D) x Length (L) x Leg distance (C) x Thread (T)
| Brand | ZhongYue | |||
| Name | Anchor bolt | |||
| Type | HS26/HS32 | |||
| L Type, Y Type, J Type | ||||
| Or the type by customers’ drawings | ||||
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanical properties | Tensile strength: ≥400Mpa | Tensile strength:≥500Mpa | Tensile strength:≥800Mpa | Tensile strength:≥1000Mpa |
| Yield strength:≥240Mpa | Yield strength:≥300Mpa | Yield strength:≥640Mpa | Yield strength:≥900Mpa | |
| Elongation:22%min | Elongation:20%min | Elongation:12%min | Elongation:9%min | |
| Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | |
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
| Standard refers | UIC864-2 | |||
Production Procedure
Raw material —— Wire drawing —— Cutting the wire rod —— forming the head —— cutting Edge —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Delivery
Inspection machine
1. Brinell Hardness Tester
2. Carbon and Sulfur Analyzer
3. Rockwell Hardness Machine
4. Automatic Impact Testing Machine
5. Metallographic Microscope
6. Automatic High-speed Analyzer
7. Fatigue Testing Machine
8. Metallographic Specimen Polishing Machine
9. Metallographic Specimen Pointing Machine

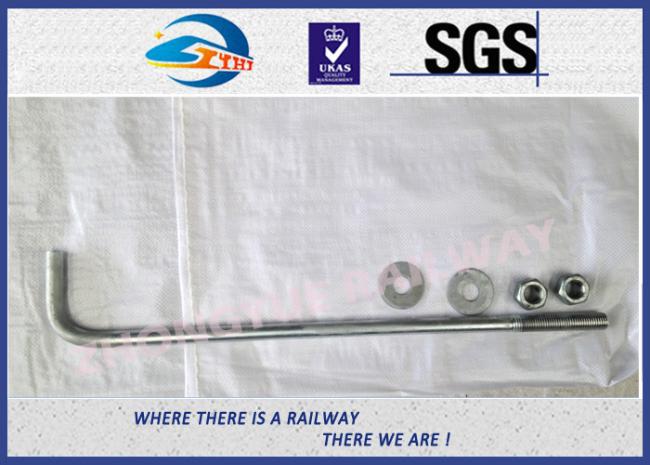

L-Shaped Anchor Bolt (90 Degree Bend)
