DIN931 / DIN933 ASTM BS GB Standard Hot Dip Zinc Custom Railway HEX Bolt

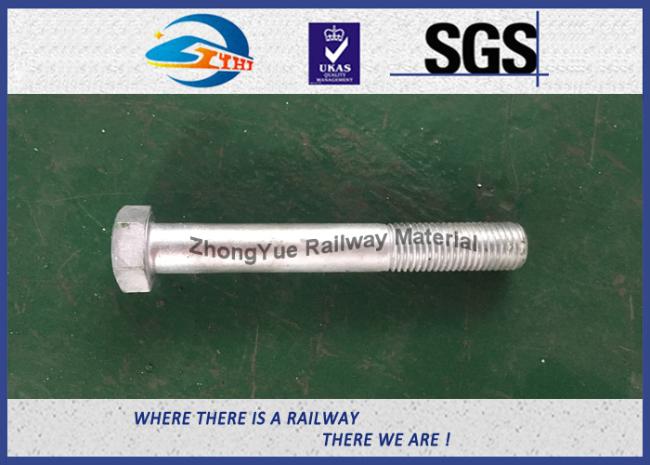

Railway HEX Bolt
Other Name:
Rail Bolt, HEX Bolt, Railway Bolt, Track Bolt,sleeper bolt,stud bolt,anchor bolt,clamp bolt,insert bolt
Description:
Track bolts are used to fasten rail ends together at a joint. The sizes of track bolts are varying with the requirements of the section of rail. The proper diameter and length of the track bolt can be determined by checking the applicable railway standard.
Standard:
DIN, JIS, ISO, ANSI, ASTM, BS, AS
Application:
Railway, Mining, Bridge, Construction and so on
Specifications:
Grade:4.6/4.8/5.6/ 8.8/ 10.9
Dimensions:M20, M22, M24 M25, M27, M28, M30, M32, M40, M50and so on
| Brand | ZhongYue | |||
| Name | Railway bolt | |||
| Type | DIN931/DIN933 | |||
| HEX Bolt | ||||
| Or the type by customers’ drawings | ||||
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanical properties | Tensile strength: ≥400Mpa | Tensile strength:≥500Mpa | Tensile strength:≥800Mpa | Tensile strength:≥1000Mpa |
| Yield strength:≥240Mpa | Yield strength:≥300Mpa | Yield strength:≥640Mpa | Yield strength:≥900Mpa | |
| Elongation:≥22% | Elongation:≥20% | Elongation:≥12% | Elongation:≥9% | |
| Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | |
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
| Standard refers | DIN933/DIN931 | |||
Production Procedure

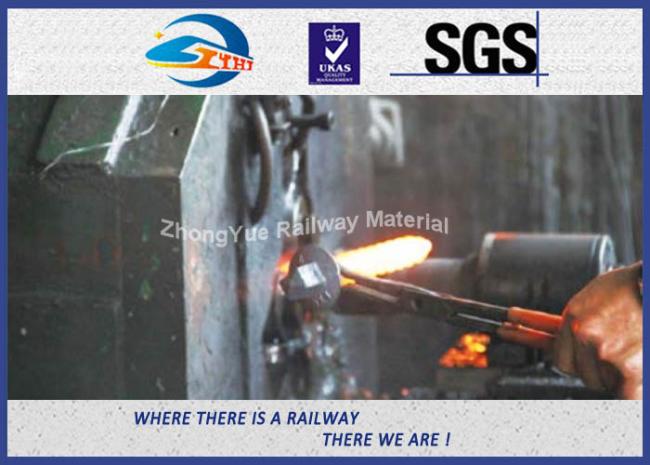

Raw material —— Wiredrawing —— Cutting the wire rod to length —— forming the head —— cutting Edge —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Shipment
Surface Treatment
1.plain (oiled)
2.color paint
3.oxide Black (most choice)
4.Zinc
5.HDG
6.bitumenizing
7.wax
8.phosphatiert

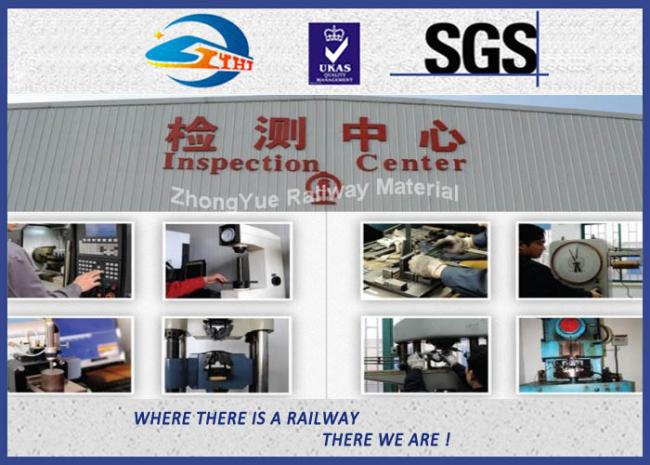

Inspection facilities
1. Brinell Hardness Tester
2. Carbon and Sulfur Analyzer
3. Rockwell Hardness Machine
4. Automatic Impact Testing Machine
5. Metallographic Microscope
6. Automatic High-speed Analyzer
7. Fatigue Testing Machine
8. Metallographic Specimen Polishing Machine
9. Metallographic Specimen Pointing Machine
Our Company
Established in 2013, ZhongYue has become one of the largest manufacturer of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. Our products are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies such as VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.
Sticking to our quality first policy, ZhongYue pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection equipments to make sure all our railway bolt products are of high quality and up to customers' requirements.
