500W waterproof led flood lights for outdoor lighting fixture.

Price Negotiable
Price: Contact us for details
MOQ: 1pcs
Delivery Time: 5-15 working day
Brand: Leyond
Product Description

500W waterproof led flood lights for outdoor lighting fixture.

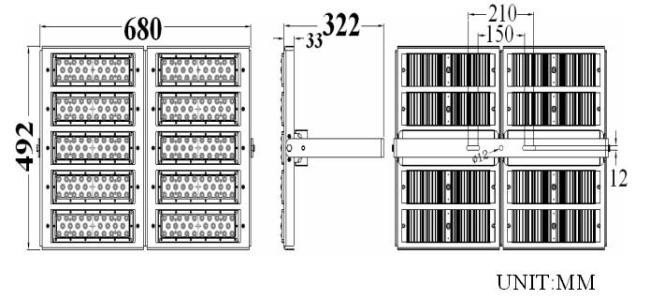

Lamp Drawing:

Features:

1) Adoption LEYOND exclusive Lens with light transmittance up to 95%.

2) There are 25°,60°, 90° ,150*65 degre beam angle options for the Lens.

3) High luminous efficiency, Whole lamp output light effiency >160LM/W.

4) High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.



Specifications:



Par NO

Parameter

LY-ST23500PW LY-ST23500NW LY-ST23500WW
Input voltage AC100V~240V 50/60HZ
System consumption(W) 500 500 500
Luminous flux(lm) 80000 74000 68000
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

Beam Angle 25°60°, 90°,150*65 25°,60°, 90°,150*65 25°,60°, 90°,150*65
CRI >80
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
LED Driver MEAN WELL ELG-240 / HLG-240H 2pcs
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP66
Dimmable YES&NO YES&NO YES&NO
Size(mm) 680*492*322 680*492*322 680*492*322
Net Weigh(kg) 13 13 13
Package Size(mm) 720*535*120 720*535*120 720*535*120
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 13.8 13.8 13.8

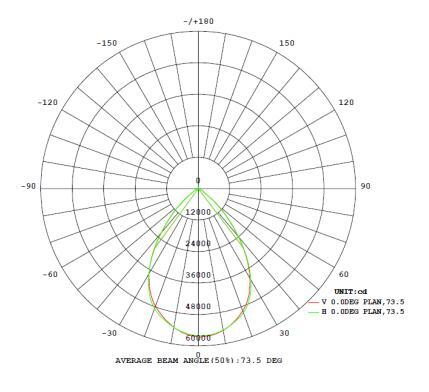

Distribution Curve:

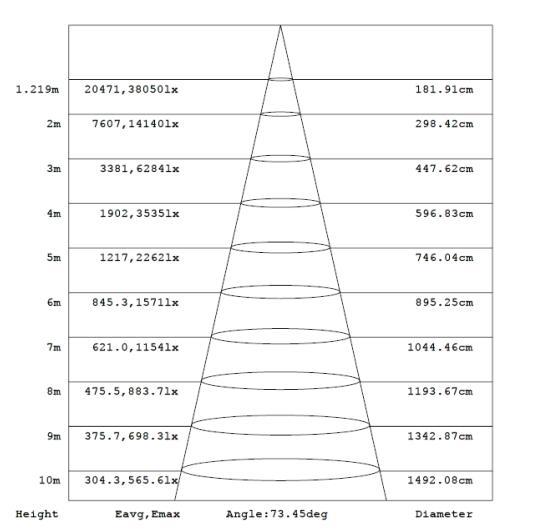

Photometry(AAI Figure):



Package:

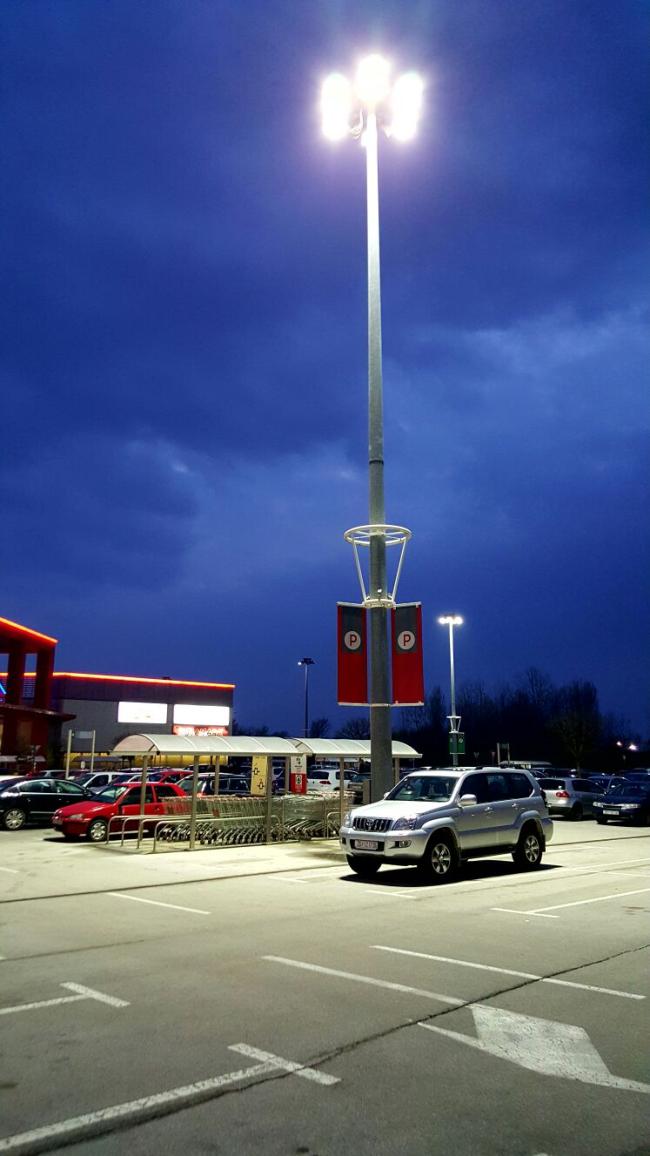

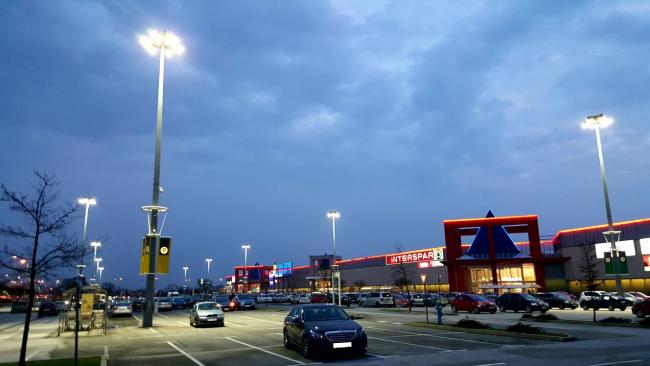

Project Reference:
