100Volt - 240 V AC Garden / Pathway Waterproof LED Flood Lights 10W 50Hz / 60Hz
10w 100volt - 240V AC 50Hz / 60Hz Waterproof LED Flood Lights for Garden / Pathway
10w LED Flood Light technical data:
|
Model |
LY-FL10010PW |
|
Power consumption(W) |
10W |
|
Input Voltage |
100-240V AC 50/60Hz |
|
Power factor |
≥0.95 |
|
Power Efficiency |
≥85% |
|
LED Power |
10W |
|
LED luminous flux |
840-960lm |
|
Average Iilluminance |
1m=75lux |
|
Facula Area |
1M=3.5x3.5M |
|
CRI |
>70 |
|
Beam Angle |
120º |
|
Color Temperature |
Warm white WW 2800-3500K |
|
Operatinal condition |
Temperature:-40℃~60℃ |
|
Product Dimension(mm) |
L115xW85xH130 |
|
Net Weight |
0.51kg |
|
Package |
Color box,33pcs/ctn |

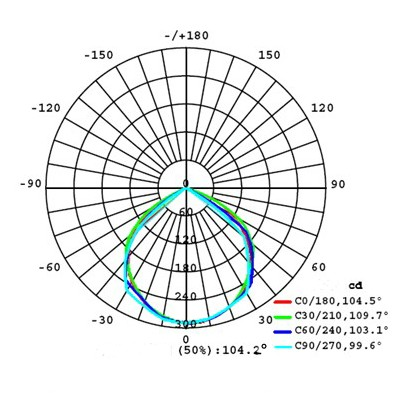

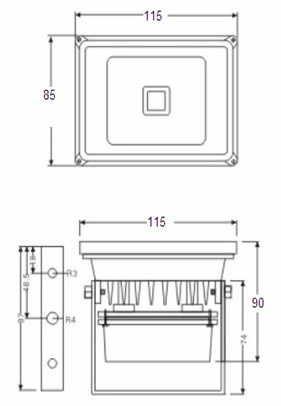

Product dimension(mm) Optical Parameters
Application
1. Projector / Spotlight/Wall Lighting
2. Pathway Lighting / Park Lighting
3. Garden Lighting/Backyard Lighting
Features
- Multi-Chip on Lead Frame, Single Module LED Package Design
- System Design Integrating Power Supply, LED Light Engine, and Heat Sink
- Over Current, Over Voltage, Over Heat, Thunder Protection
- Choice of Correlated Color Temperatures(Specification Re-Defined Accordingly)
- Long lifespan for LED 50,000 hrs
- 100% Recycle, No Pollution, and UV, IR
Operation and Storage Condition
- Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%
- Input Voltage 85-265V AC, 50/60Hz
- Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
- Mounting Height : Suitable for 8~10mheight
Certificate
- The Whole Spotlight Certificated with ROHS
- The Whole Spotlight Certificated with CE
