160Lm/W high efficiency LED Street light 50W with IP66 waterproof rating.
160Lm/W high efficiency LED Street light 50W with IP66 waterproof rating.
Specifications:
|
Par NO Parameter |
LY-ST10050PW | LY-ST10050WW | LY-ST10050NW |
| Input voltage | AC100V～240V 50/60HZ // DC12-24V | ||
| System consumption(W) | 50 | 50 | 50 |
| Luminous flux(lm) | 5780 | 5600 | 5720 |
| Chip Brand | Luxeon 5050/Leyond5050 | Luxeon5050/Leyond 5050 | Luxeon5050/Leyond 5050 |
| Beam Angle | 150*65 DEG | 150*65 DEG | 150*65 DEG |
| CRI | ＞70 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| LED Driver | MEAN WELL | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 410x200x90 | 410x200x90 | 410x200x90 |
| Net Weigh(kg) | 2.8 | 2.8 | 2.8 |
| Package Size(mm) | 465*255*145 | 465*255*145 | 465*255*145 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 3.3 | 3.3 | 3.3 |
Features:
1. Absolutely unique mold,make your lighting special and fantastic.
2. Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
3. Anti-glare and uniform light level to avoid any visual discomfort.
4. high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98,
UL compulsory certification.
5. Adopting Lumileds Luxeon 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type
lights in the market, with higher light transmittance up to 98%.
6. Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
7. Nice appearance and non-fouling properties, Protection class IP66.
8. Work without strobe, fast transient response；A wide range of working voltage.
Applications:
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks,
residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
Package:
Inner box Size: 465mm×255mm×145mm
Outer box Size: 580mm×485mm×310mm (4 PCS LED Street Light)

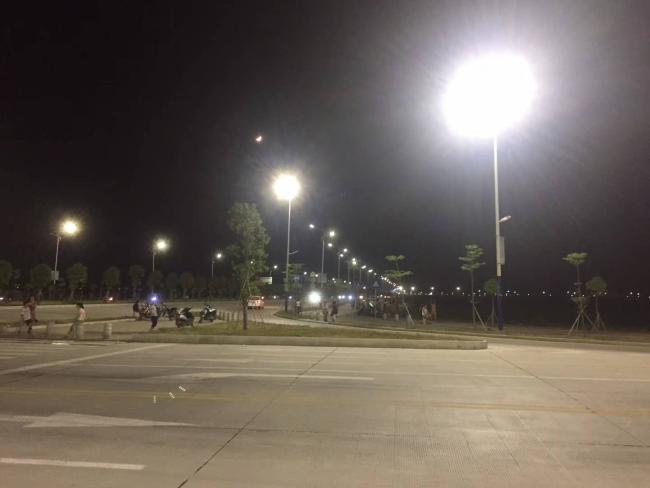

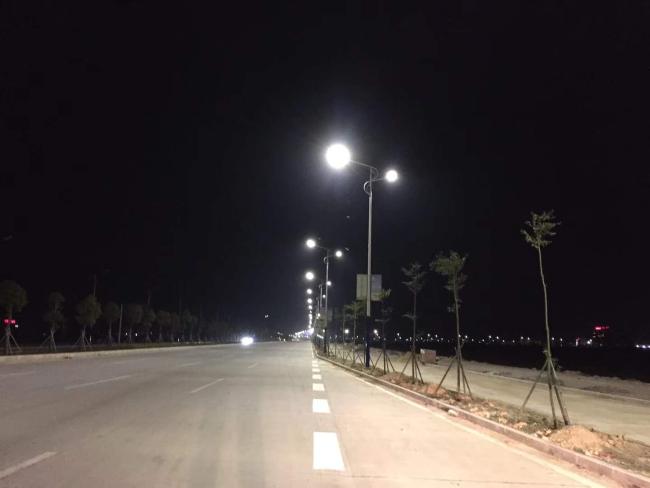

Project Pictures:
