High power Petrel LED Street light 100W for LED Street lighting fixtures.
High power Petrel LED Street light 100W for LED Street lighting fixtures.
1. Application
It is applicable to street lighting at highways, urban roads and secondary roads, stadiums,
sidewalk, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
2. Features
1) Lumileds Luxeon 3030/5050 chips;
2) Meanwell or Inventronics driver to keep 5 years warranty;
3) High efficiency from 120Lm/W to 160Lm/W with diffierent chips;
4) IP66 Die custing Aluminum housing.
5) with other more optional functions: light controller, circuit breaker,single lamp controller, anti-falling sling, etc.
3. Specification
|
Par NO Parameter |
LY-ST80080XX | LY-ST80090XX | LY-ST80100XX | LY-ST80120XX |
| Input voltage | AC100V～277V 50/60HZ / DC12-24V | |||
| POWER(W) | 80W | 90W | 100W | 120W |
| Luminous flux(lm) | 12000 | 13050 | 14000 | 15600 |
| Chip Brand | LUXEON 3030 | |||
| LED Quantity (pcs) | 128 | |||
| Beam Angle | TYPE III 150*80 | |||
| CRI | 70/80 | |||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | |||
| Luminous efficiency(lm/w) | ＞150 | ＞145 | ＞140 | ＞130 |
| LED Driver | MEAN WELL / INVENTRONICS | |||
| Lifespan(h) | ＞50000 | |||
| IP Rating / IK | IP66 / IK10 | |||
| Material | ADC 12 | |||
| Dimmable | 1-10V/DALI | |||
| Light body color | Black/Grey | |||
| working environment | Temperature -20 to +45°C, Relative Humidity 20~90% | |||
| Storage environment | Temperature -20 to +60°C, Relative Humidity 5~95% | |||
| Size(mm) | L703*W200*H109mm (L27.68*W7.88*H4.29Inch) | |||
| Net Weigh(kg) | 4.2 | |||
| Package Size(mm) | L743*W242*H154mm (L29.25*W9.53*H6.06inch) | |||
| Package Quantity(Pcs) | 1 | |||
| Gross Weigh(kg) | 4.9 | |||
| Installation height(m) | 6-10 | |||

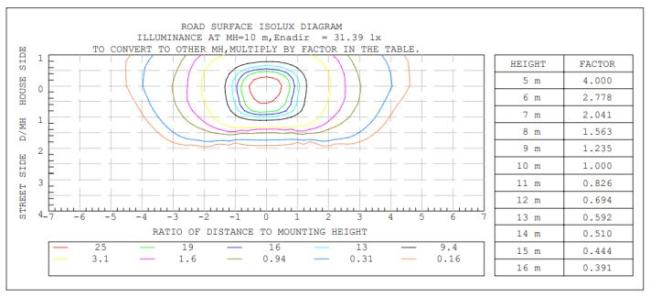

4. Distribution Curve
5. Package
| Name | Size | Quantity | N.G | G.W |
| Inner box |
L743*W242*H154mm (L29.25*W9.53*H6.06inch) |
1pcs | 4.2kg | 4.9kg |
| Outer box |
L760*W254*H332mm L29.92*W10.0*H13.07inch |
2pcs | 8.4kg | 10.3kg |
6. Operation and Storage Condition
Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -30 to +85°C, Relative Humidity 5~95%
Mounting Height : Suitable for 5~12m height
7. Projects Reference

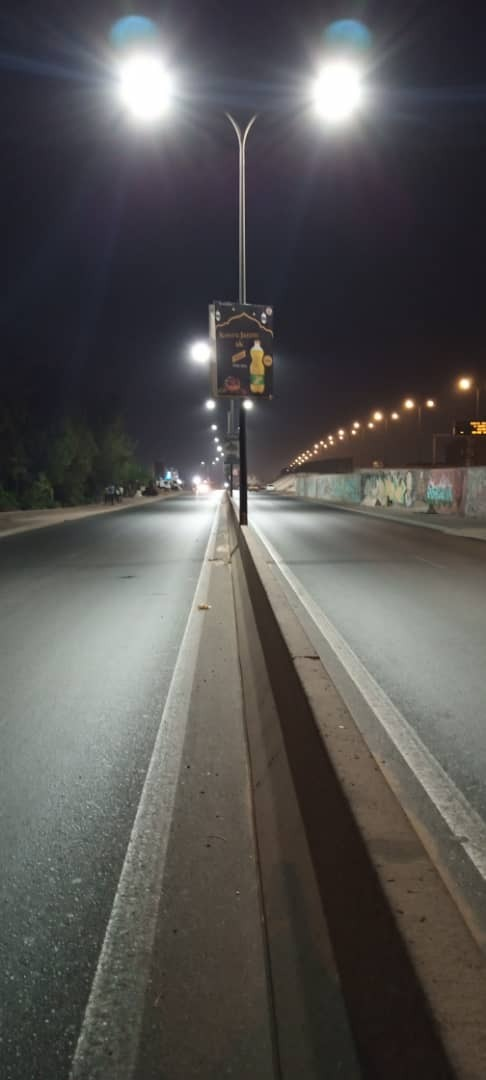

LED Street Light in Chile:
LED Street light in Singapore:
More detailed project pictures to check the link of: http://www.leyond.com.cn/project/
